VUE FWD V6-3.6L Hybrid (2009)

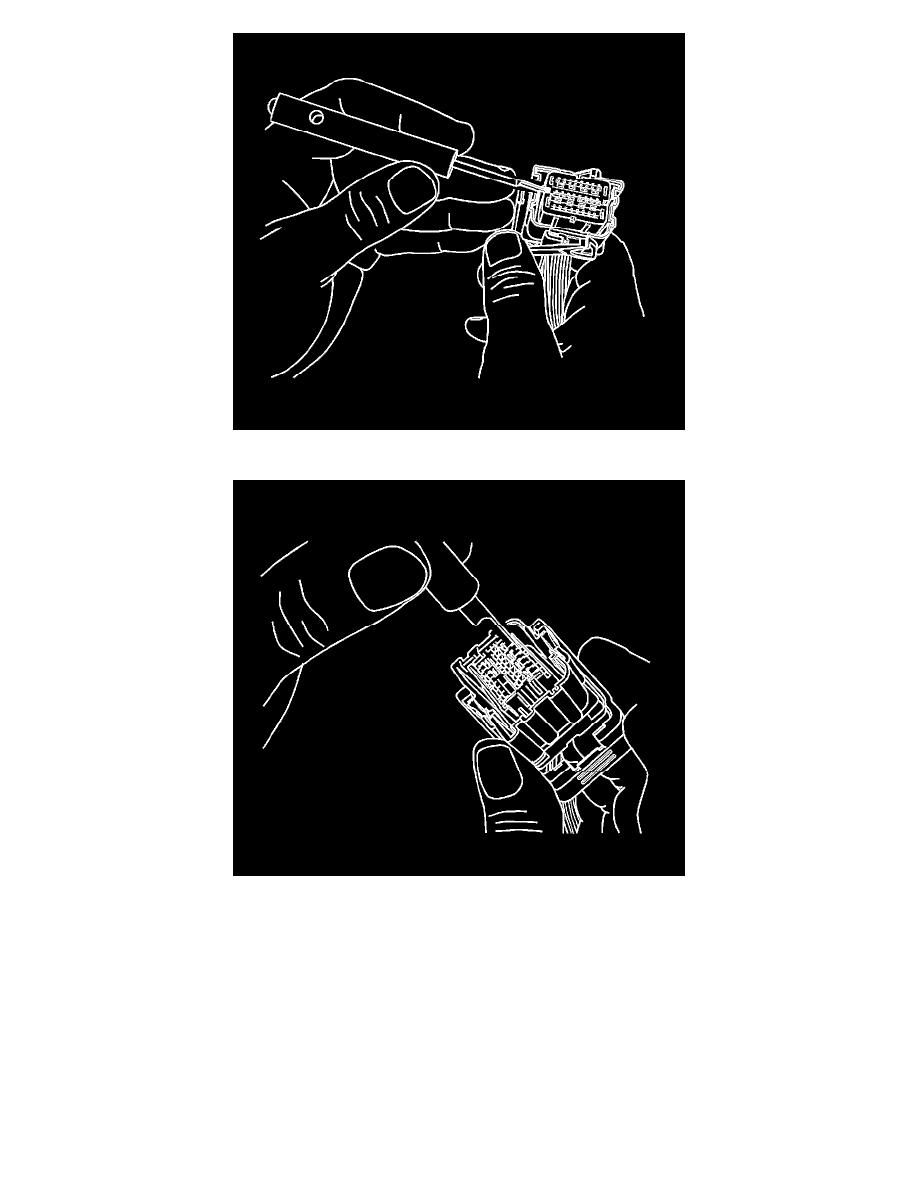

5. Using terminal tool J-38125-11A or equivalent, remove the TPA by lifting straight off the connector body.
6. Using terminal release tool J-38125-215A, place the tip of the tool on the outside edge next to the terminal and depress the lock tab and remove
the rear of the connector body.
Terminal Repair Procedure
Use the appropriate terminal and crimper in the J-38125 in order to replace the terminal.
Tyco/AMP Connectors (0.25 Cap)
Tyco/AMP Connectors (0.25 Cap)
Special Tools
J-38125 Terminal Repair Kit
