A/C - Poor Cooling Ability|Page 4360 > < A/C - Poor Cooling Ability|Page 4358

xB L4-1.5L (1NZ-FE) (2004)

Page 17
background image

Components

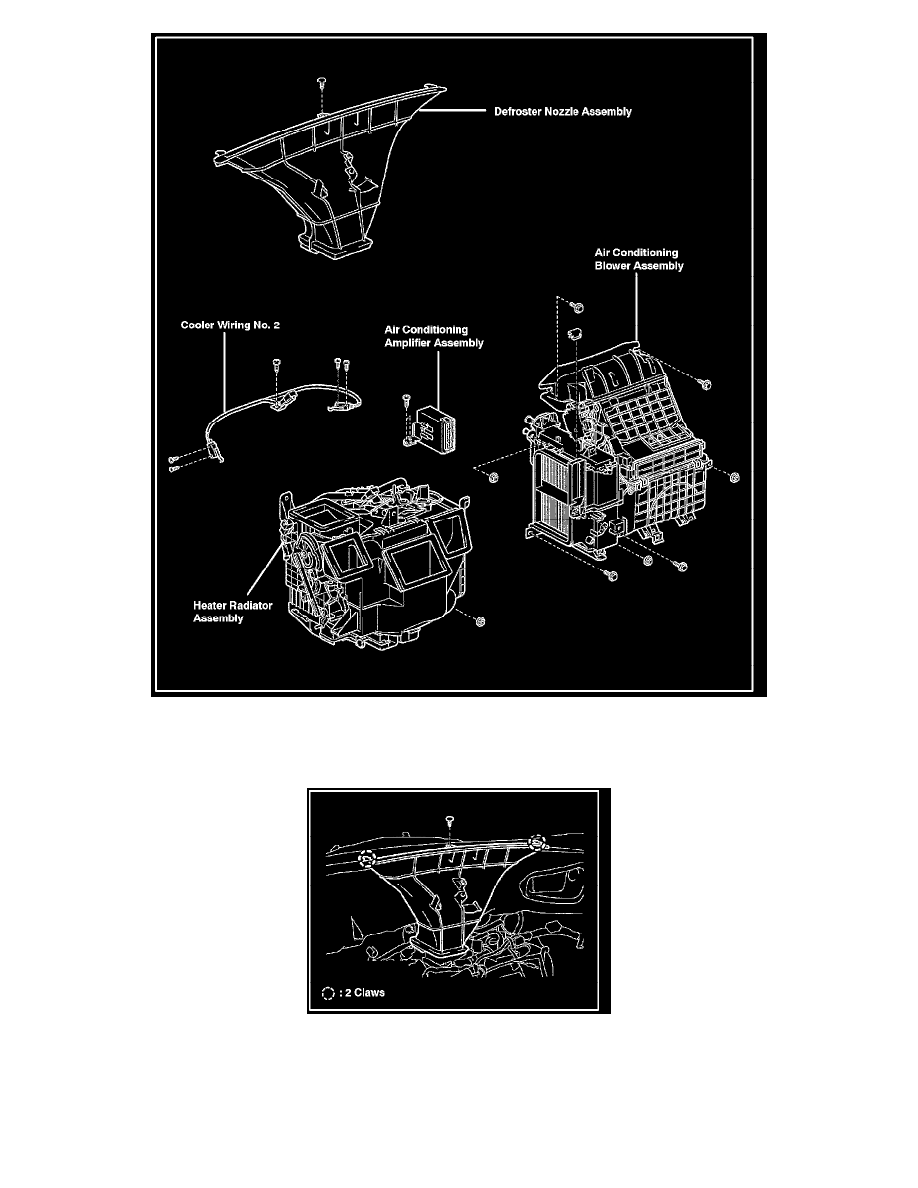

Installation Procedure A

1.

Remove the defroster nozzle assembly.

A.

Remove the clip.

B.

Disengage the 2 claws and remove the defroster nozzle assembly.
