xB L4-1.5L (1NZ-FE) (2004)
a. Install a new O-ring to the transmission oil filler tube.
b. Install the transmission oil filler tube with the bolt.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
c. Install the oil cooler tube clamp with the bolt.
Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
d. Connect the hose.
e. Connect the throttle position sensor connector.
13. INSTALL TRANSMISSION OIL LEVEL GAGE SUB-ASSY (A/T TRANSAXLE)
14. INSTALL ACCELERATOR CONTROL CABLE ASSY

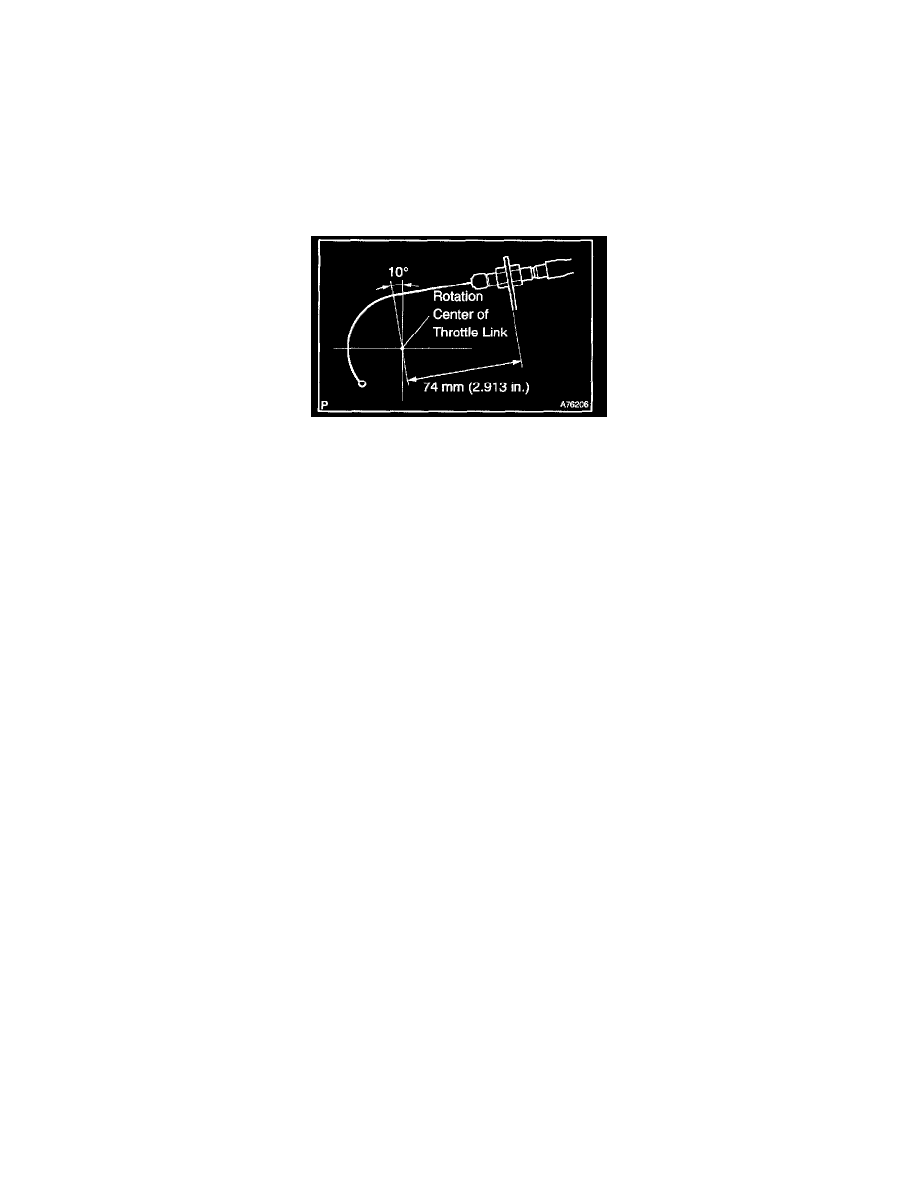

a. Install the accelerator control cable as shown in the illustration.
Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)
15.
INSTALL AIR CLEANER ASSY
a. Secure the air cleaner case to the air cleaner bracket with the 3 bolts.
Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
b. Secure the air cleaner inlet to the engine compartment with the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
16. ADD ENGINE COOLANT
17. CHECK FOR ENGINE COOLANT LEAKS
