xB L4-1.5L (1NZ-FE) (2004)

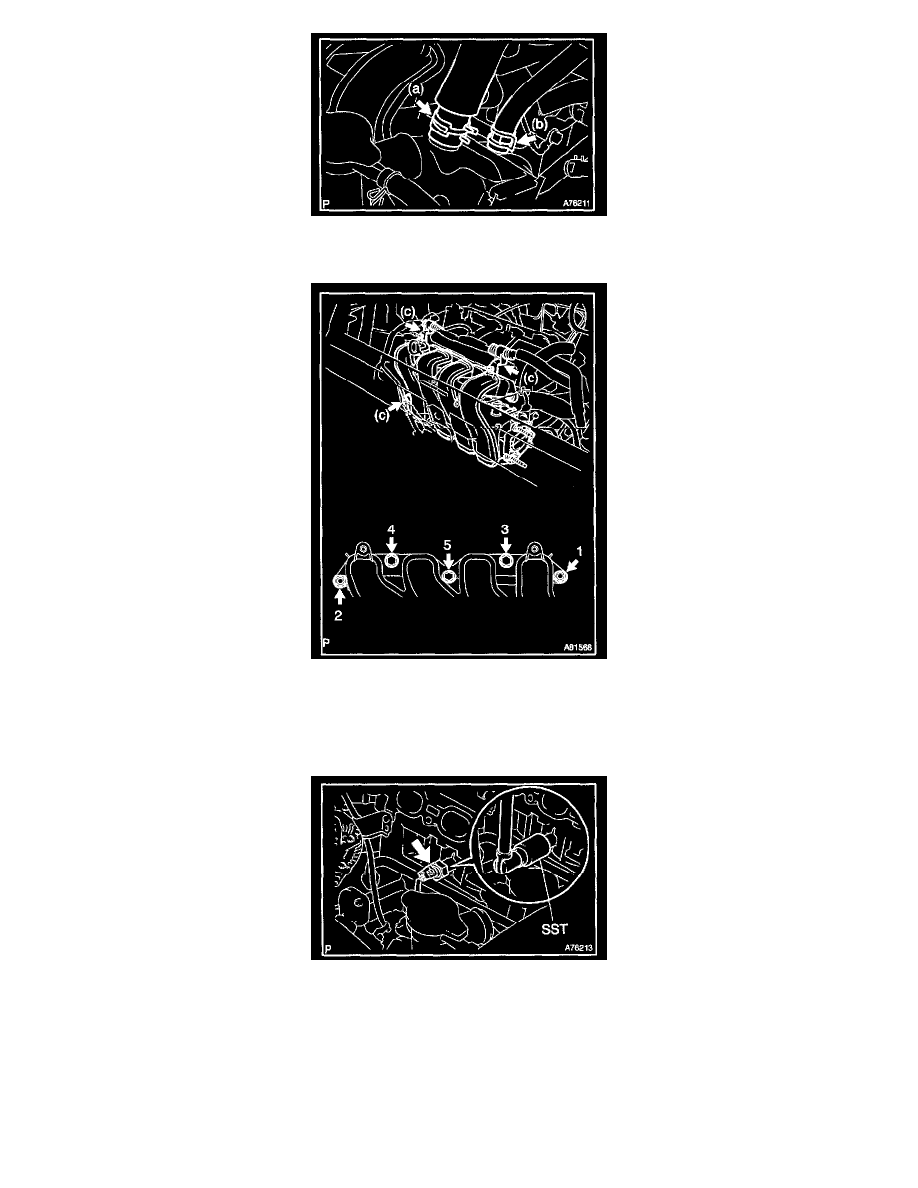

a. Disconnect the ventilation hose.
b. Disconnect the union to connector tube hose.
c. Remove the 3 wire harness clamps.
d. In order to remove the intake manifold, using several steps, remove the 3 bolts and 2 nuts in the sequence shown in the illustration.
e. Remove the gasket from the intake manifold.
11. REMOVE KNOCK SENSOR
a. Disconnect the knock sensor connector.
b. Using SST, remove the knock sensor.
SST 09816-30010
12. INSTALL KNOCK SENSOR
a. Using SST, install the knock sensor.
SST 09816-30010
Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)
