xB L4-1.5L (1NZ-FE) (2004)
/Page-690006.png)

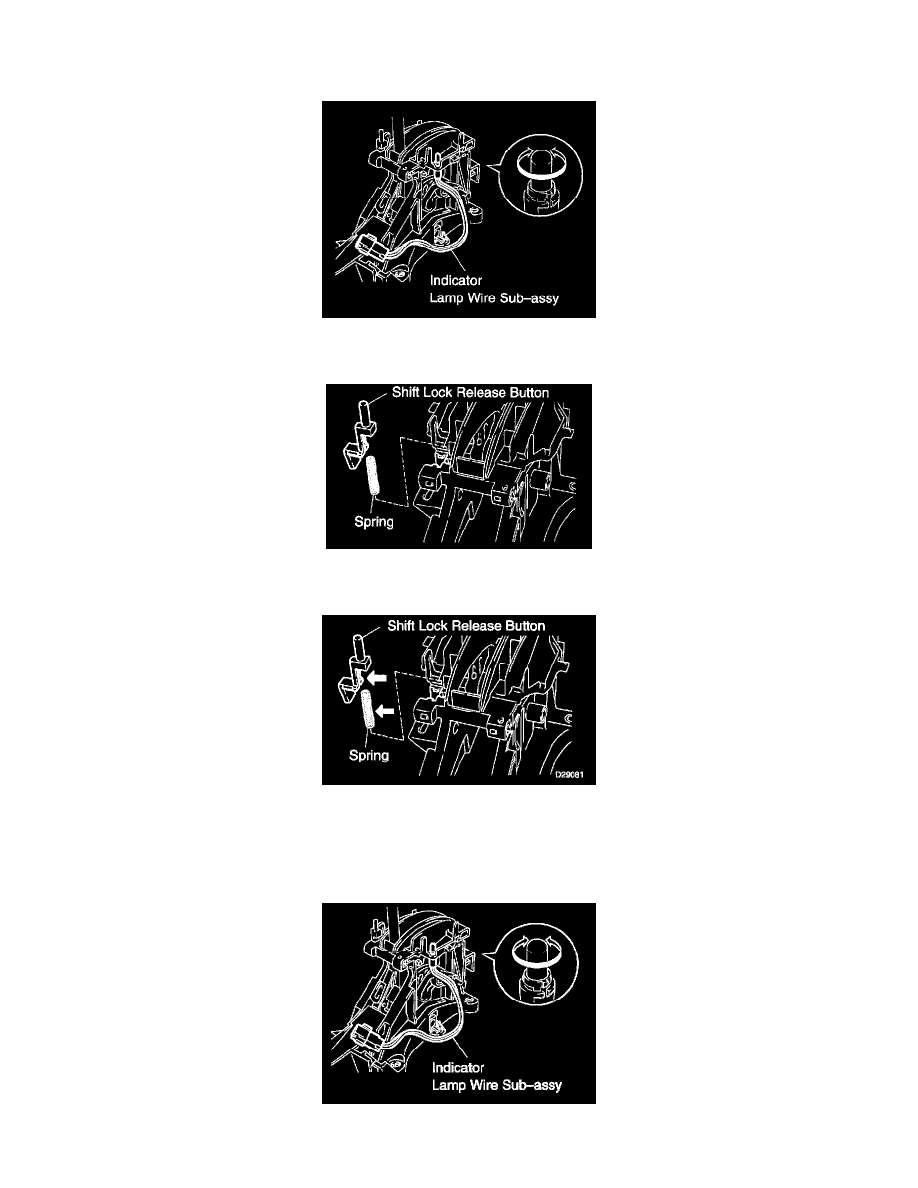

11. REMOVE SHIFT LOCK SOLENOID
a. Remove the shift lock solenoid from the floor shift assy.
12. REMOVE INDICATOR LAMP WIRE SUB-ASSY
a. Remove the indicator lamp wire sub-assy from the floor shift assy.
13. REMOVE SHIFT LOCK RELEASE BUTTON
a. Remove the shift lock release button and spring from the floor shift assy.
14. INSTALL SHIFT LOCK RELEASE BUTTON
a. Apply MP grease on the shift lock release button and spring.
b. Install the shift lock release button and spring to the floor shift assy.
HINT: Ensure that the claws fit tightly.
15. INSTALL INDICATOR LAMP WIRE SUB-ASSY
