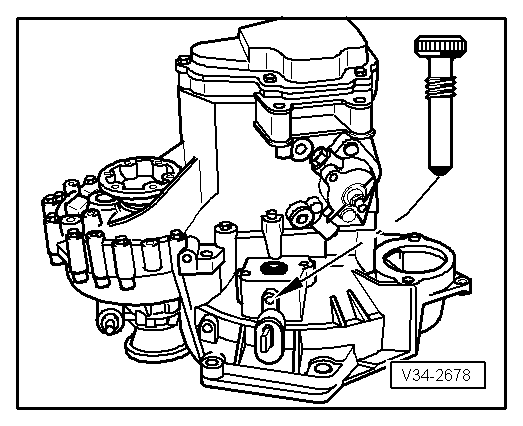

| If the gearbox had to be replaced, the speedometer transmitter, the lever for selection and that for return must be used again in the new gearbox. |
–
| Clean the notches in the main shaft and lubricate them slightly with lubricant grease -G 000 100-. |
–
| The clutch disk must be able to move from one side to the other over the main shaft. |
–
| Check whether there are adjustment sleeves for centring the gearbox in the engine block; if not, install them. |
–
| Make sure that the intermediate plate is properly housed in the base of the engine. |
–
| Centre the drive engine unit in order to put it into the position for assembly. |
–
| Assemble the gearbox unit in the engine, free from stresses, putting it into place by shaking. |
–
| Put the two bolts partially into place that attach the gearbox to the engine. |
–
| The assembly shall be made in the opposite way to that for dismounting. |
|
|
|
