Leon Mk2

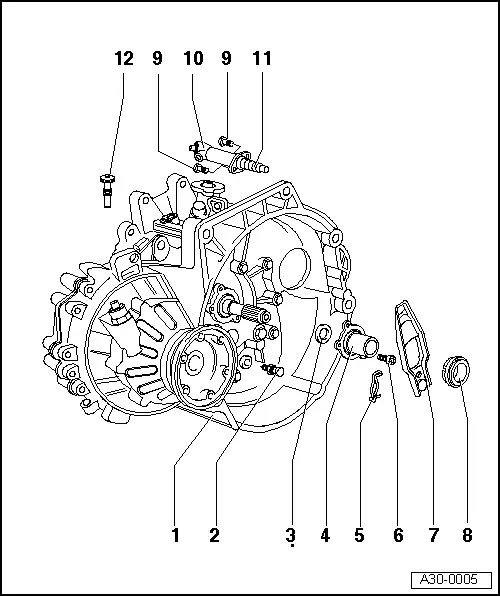

Declutching unit: repair |
1 - | Gearbox |
2 - | Spherical pivot, 25 Nm |
q | Grease with -MoS2- lubricant |
3 - | O-ring seal for main shaft |
q | Replace → Chapter |
4 - | Guide sleeve |
q | With vulcanised O-ring seal |
q | Change the guide sleeve and the O-ring seal together should the latter be damaged |
q | Grease the guide sleeve with -MoS2- lubricant through the area of the declutching collar |
5 - | Attachment spring |
q | Attach it to the declutching lever |
6 - | Lag screw, 20 Nm |
7 - | Declutching lever |
8 - | Declutching collar |
q | Do not wash the collar. It should only be cleaned with a cloth |
q | Replace noisy clutch collars |
q | Grease the contact points with the declutching lever with -MoS2- lubricant |
9 - | Bolt with collar, 20 Nm |
10 - | Small clutch pump |
11 - | Pusher |
q | Grease the tip of the pusher with -MoS2- lubricant. |
12 - | Assembly bolt |
q | Secure the declutching lever when assembling the gearbox. |
q | It must be unscrewed after assembling the gearbox. |
Note!
If there is no assembly bolt → Item an M8×25 bolt may be used. |
