Bonnet - removing
Bonnet - removing
Bonnet - removing
–
Open the front bonnet and hold open with the bonnet rod.
–
Remove front bonnet soundproofing
→ Chapter
.
–
Remove the front bonnet moulding
→ Chapter
.
–
Remove the clip
-1-
and remove the windscreen washer pipe support.
–
Separate the bushing
-2-
from the housing in the front bonnet.
–

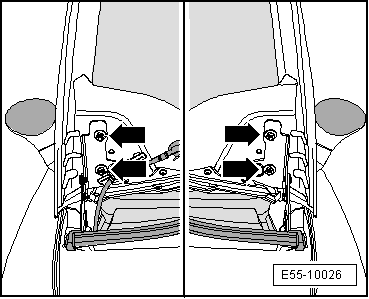

Lower the front bonnet without completely closing and extract the bolts on both sides
-arrows-
.
Note
With the help of a second operator hold the front bonnet firmly while removing the fastening nuts.
–
Open the front bonnet again and remove the fastening nuts
-arrows-
.
Note
In order to protect the front bonnet, insert a suitable material between the bonnet and the supporting surfaces.
