Leon Mk2

Loop: removal
Loop: removal
–  Removing the front seat → Chapter
  Caution
On doing any work on the frame bear in mind that when it is in normal position it is in tension because of the springs and on activating the release mechanism or doing any repairs to it the seat will fold up. Danger of getting caught.
–  Activate the realease lever and fold the seat.

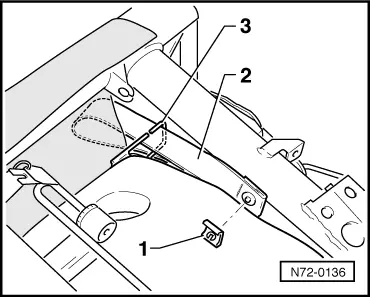

–  Remove the clip -1-, lever and separate the loop -2- of the pivot and remove it from the guide.
  N72-0136
