Disassembling and assembling the gearshift forks Special tools and workshop equipment required t  Driver -MP1-304 (10-206)- t  Pressure plate -MP3-407 (VW 402)- t  Pressure plate -MP3-453 (VW 431)- t  Distance sleeve -MP3-458 (VW 472)- t  Assembly device -MP5-402 (3301)- t  Removal tool for the inner lining of the door panel -MP8-602/1- t  Pressure plate -T30100/1-

The gearshift fork group (Pos. 7) does not have to be disassembled for the disassembly and assembly of the shift segments, clamping plates and angular ball bearings.

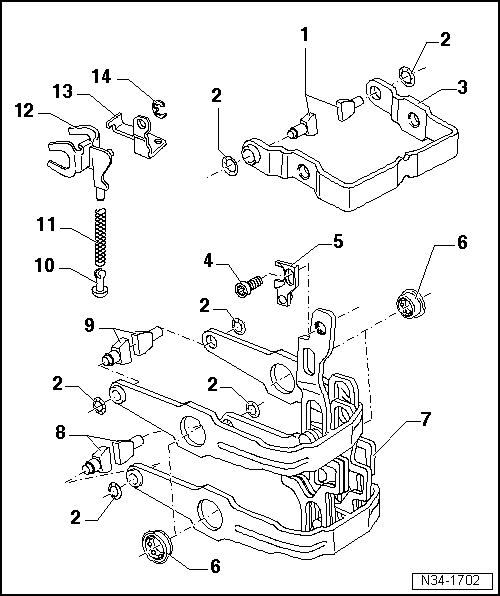

1 -	5th gear shift segment

q	Identification → Fig.

q	It must still be possible to rotate the shift segment freely once the circlip has been fitted

2 -

Circlip

q	always replace → Electronic Catalogue of Original Parts

q	removing → Fig.

q	installing → Fig.

3 -	5th gear shift fork

q	Setting 5th gear → Chapter

4 -

25 Nm

5 -	5th gear shift fork

6 -	Angular ball bearing

q

4 pieces

q	removing → Fig.

q	installing → Fig.

7 -	Gearshift fork group with shift rails

8 -	1st/2nd gear shift segment

q	Identification → Fig.

q	It must still be possible to rotate the shift segment freely once the circlip has been fitted

9 -	3rd/4th gear shift segment

q	Identification → Fig.

q	It must still be possible to rotate the shift segment freely once the circlip has been fitted

10 -	Sliding shoe

11 -

Spring

12 -	Gearshift fork reverse gear

13 -	Support for reverse gear shift fork

14 -

Circlip

Identification of shift segments Dimension -a- 1 -  Shift segments 1st and 2nd gear up to 08.00 = 12.1 mm 1 -  Shift segments 1st and 2nd gear as of 09.00 = 11.4 mm 2 -  Shift segments 3rd and 4th gear = 7.7 mm 3 -  Shift segments 5th gear = 12.1 mm   Note The shorter shift segments for the 1st and 2nd gear can also be installed on previous gearboxes.

Removing the circlip –  Secure the shift fork in a vice fitted with protective jaws -B-. –  Lift off the circlip -A- in -direction of the arrow-.

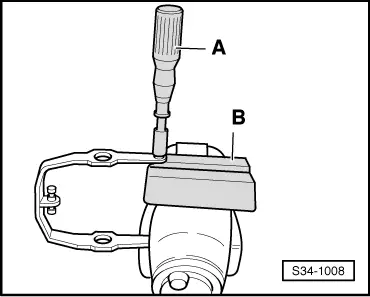

Fitting the circlip –  Press the circlip with a handle wrench into the slot of the shift segment.   Note It must still be possible to rotate the shift segment freely once the circlip has been fitted. -A- - Handle wrench, wrench size 10 -B- - Protective jaws

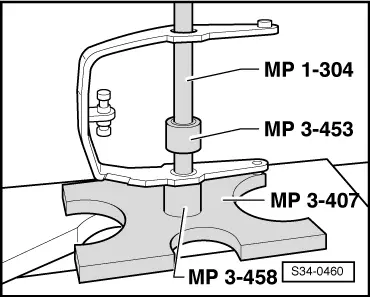

Removing the angular ball bearing   Note Do not bend the shift forks when removing and installing the angular ball bearings.

Insert the angular ball bearing up to the stop into the gearshift fork The recess in the pressure plate -T30100/1- points towards the ball bearing.

Shift fork with fitted shift segments

	Dimension -a- (mm)
1st/2nd gear shift fork up to 08.00	87,2 … 87,4
1st/2nd gear shift fork as of 09.00	88,4 … 89,1
3rd/4th gear shift fork	93,6 … 93,8

Shift segment assignment → Fig.
