Brake vacuum pumpV192 (vehicles with petrol engines)
Brake vacuum pumpV192 (vehicles with petrol engines)
Brake vacuum pump -V192- (vehicles with petrol engines)
The brake vacuum pump -V192- is located at the front of the gearbox.
No provision is made for repairing the brake vacuum pump -V192-. The brake vacuum pump -V192- must be replaced if a fault arises.
Inspection
→ Vehicle diagnostic tester
.
Removing:
–
Remove the vacuum hose
-1-
from the brake vacuum pump -V192-.
–
Disconnect the plug connection
-2-
of the brake vacuum pump -V192-.
–
Remove all the plug connections and cables from the support
-3-
.
–
Unscrew bracket
-3-
with brake vacuum pump -V192-
-arrows-
.
–

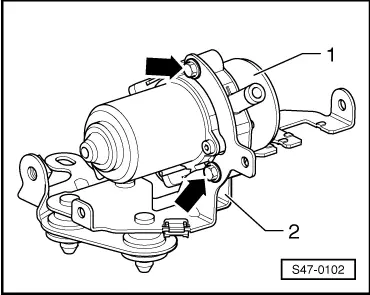

Unscrew brake vacuum pump -V192-
-1-
from bracket
-2-
-arrows-
.
Installing:
Installation is carried out in the reverse order.
Tightening torques:
Brake vacuum pump -V192- to support
8 Nm
Support to automatic gearbox
25 Nm
