Octavia Mk2

Plastic relay lever
Plastic relay lever
Special tools and workshop equipment required
t  Grease -G 000 450 02-
Removing and installing plastic relay lever as of 06.07

–  Pull forward the locking mechanism as far as the stop in -direction of arrow 1-, then lock by turning to the left in -direction of arrow 2-.
l  Before removal, the cable lock must be separated from the selector cable in order to avoid damage to the selector cable.
l  Gearbox shift lever is located in the neutral position.
  S34-1116

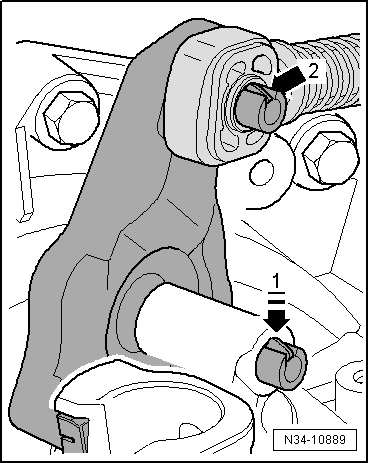

The relay lever is secured with a catch -arrow 1- on the gearshift cover
–  Carefully press the catch -arrow 1- up to the stop towards the bottom.
–  Afterwards move relay lever in its bearing point back and forward (direction of operation). To do so, carefully pull out the cable lock.
l  Only remove cable lock on removed relay lever → Fig..
  Note
To install, grease bearing points and friction surfaces with grease -G 000 450 02-.
–  Press cable lock onto the relay lever → Fig..
–  Insert relay lever together with cable lock.
l  The catch -arrow 1- secures the relay lever.
l  The cable lock must be located behind the catch -arrow 2-.
  N34-10889

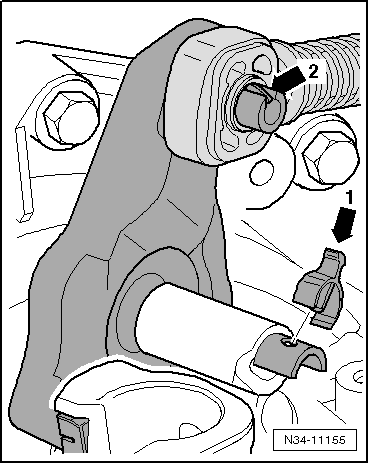

The relay lever is secured with a clip -arrow°1- on the gearshift cover
–  Remove the clip -arrow 1- from the opening in the relay lever.
–  Afterwards, pull the relay lever together with the cable lock out of its bearing point in the gearshift cover.
l  Only remove cable lock on removed relay lever → Fig..
  Note
To install, grease bearing points and friction surfaces with grease -G 000 450 02-.
–  Press cable lock onto the relay lever → Fig..
–  Insert relay lever together with cable lock.
–  Secure the relay lever with a clip -arrow 1-.
Remove and install cable lock for selector cable from plastic relay lever
  N34-11155
Lever off cable lock for selector cable from plastic relay lever
l  Relay lever removed.
–  Insert cross-head screwdriver -A- between bushing -B- and relay lever.
  N34-10886

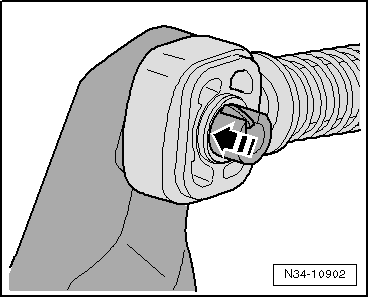

Press on cable lock
l  Relay lever removed.
l  The cable lock must only be pressed onto the bushing -arrow-.
l  Cable lock must move freely on relay lever.
l  It must be located behind the catch → Anchor.
  N34-10902
