Octavia Mk2

Radio „Swing“, „Bolero“
Radio „Swing“, „Bolero“
Removing
–  Check if there is no CD in the CD drive, if necessary take it out → Operating instruction of the radio.
  Note
Radio Bolero has a 6 disc CD changer. After removing the last CD, the CD drive is automatically switched off to protect it against damage due to possible vibrations outside the vehicle cockpit.
–  Switch off radio, the ignition and all electrical components.
–  Vehicles with mobile phone holder - slacken mobile phone holder → Chapter.
–  Remove radio cover frame and heating/air conditioning system control using a disassembly wedge -3409-.
–  Then carefully slacken the upper cover of the radio -3-.

–  Screw out the fixing screws -2- (1.5 Nm) and pull the radio -1- out of the dash panel.
  S91-0171

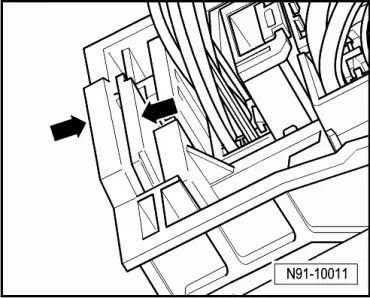

–  Compress plug catch -arrows-.
  N91-10011

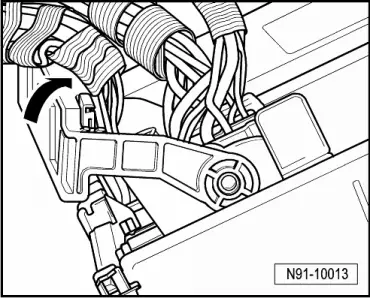

–  Open catch clamp -arrow- and disconnect plug.
  N91-10013

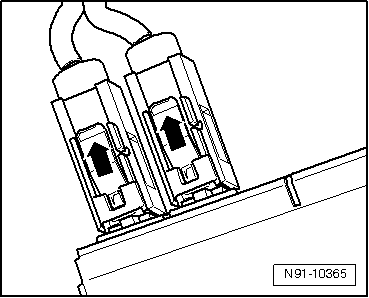

–  Release plug of antenna socket -arrows- and disconnect.
Install
Installation is performed in the reverse order, pay attention to the following points:
  Note
When inserting the radio on no account press on the display or on the operating buttons. The radio may be damaged.
If the radio was replaced:
–  Adapt radio by entering the safety code → Chapter and code → Vehicle diagnostic tester.
  N91-10365
