Octavia Mk2

Removing and installing the front and rear interior light
Removing and installing the front and rear interior light
The assembly work is identical for both lights, only the tightening torque is different.
Removing
–  Switch off the ignition and all electrical components.

–  Carefully lower light scattering cover -arrow- and remove.
  S96-0154

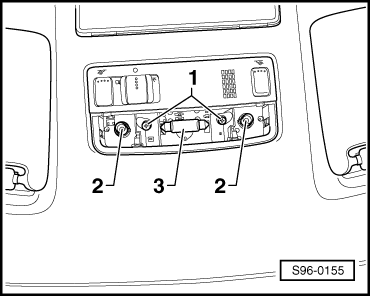

–  Unscrew bolts -1-.
t  Front interior light: 2 Nm
t  Rear interior light: 1 Nm
–  Remove the interior light downwards and disconnect the plug connections.
  Note
It is necessary to not remove the interior light to replace the light bulb.
–  Bulb -2- without base 12 V, 5 W.
–  Soffitte -3- 12 V, 10 W.
Install
–  Installation is carried out in the reverse order.
  S96-0155
