Removing and installing the lift cylinder for spray nozzles of headlights - vehicles up to MY 08
Removing and installing the lift cylinder for spray nozzles of headlights - vehicles up to MY 08
Removing

–  Pull the spray nozzles with cover -1- slightly out of the bumper by uniformly gripping on both sides of the cover, then grip the spray nozzles -2- and pull out up to the stop.
–  Release catches -arrows- and slide out the cover from the spray nozzles.
–  Remove front bumper → Body Work; Rep. gr.63.
  S92-0088

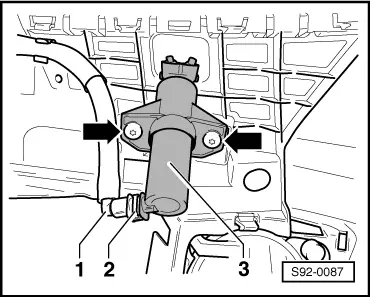

–  To unlock press the securing clamp -2- and pull off hose with coupling -1- from the lift cylinder for spray nozzles -3-.
–  Screw out the screw -arrows- (2 Nm) and remove the lift cylinder.
Install
Installation is performed in the reverse order, pay attention to the following points:
–  Insert lift cylinder for spray nozzles and tighten so that the cover of the spray nozzles covers the opening in the bumper (must be performed before installation).
–  Hoses with angled pieces must click audibly into the connections on the lift cylinders for spray nozzles.
–  After completing the assembly work bleed the headlamp cleaning system → Chapter.
  S92-0087
