Removing and installing oil filter insert
Removing and installing oil filter insert

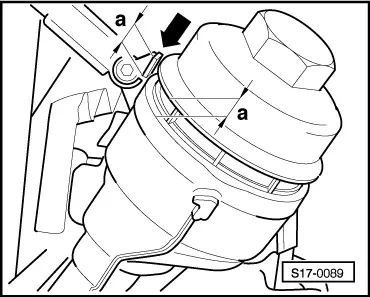

–  Screw out the screw plug from the nose elevation -a--arrow- (or by 3 turns, if the nose is no longer present) and leave in this position for at least one minute to allow the oil to run out of the oil filter insert.
  Note
If the screw plug is removed completely without waiting a while the oil will flow into the DC generator.
–  Remove the screw plug with the oil filter insert holder.
  S17-0089
–  Lightly knock the screw plug with the oil filter insert holder -1- on a fixed base -3- (e.g. wooden plate) -arrow-.
   This loosens the oil filter insert -2-.
  S17-0068
–  Place the screwdriver carefully in the groove -arrow- of the screw plug and plug off the O-ring.
–  Insert the new O-ring.
–  Insert the new oil filter insert and tighten screw plug to 25 Nm.
  S17-0088
