Roomster
Power unit
1.6/77 kW MPI engine
Engine lubrication
Removing and installing parts of the lubrication system
Removing and installing oil pump
Removing and installing oil pump
Special tools and workshop equipment required
t
Counterholder -T10172-
Removing
–
Removing the oil pan
→ Chapter
.
–
Unclip the cover for the chain sprocket of the oil pump
-A-
.
–
Hold chain sprocket for oil pump with counterholder -T10172- and slacken fixing screw.
Note
Do not unscrew the bolt yet.
–
Press chain tensioner with a screwdriver in
-direction of arrow-
.
–
Release the fixing screw of the chain sprocket.
–
Remove the chain sprocket from the shaft of the oil pump and take out of the chain.
–

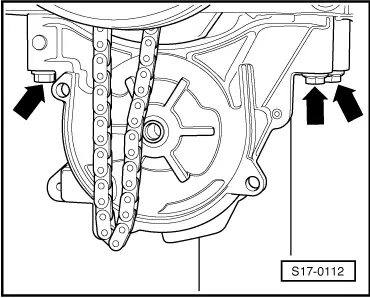

Loosen fixing bolts of oil pump
-arrows-
and unscrew.
–
Remove the oil pump from the cylinder block.
Install
–
Press chain tensioner with a screwdriver in
-direction of arrow-
.
–
Insert the chain sprocket into the chain and position on the shaft of the oil pump.
–

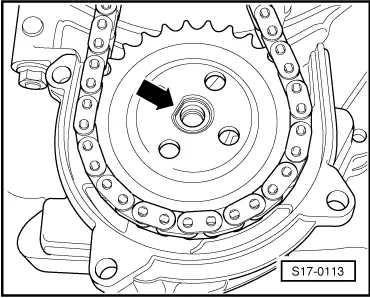

Pay attention to the seating of the chain sprocket on the shaft of the oil pump
-arrow-
.
–
Screw in the fixing screw of the chain sprocket.
–
Counterhold the chain sprocket with the counterholder -T10172-.
–
Position the torque wrench
-A-
as shown in the Fig.
–
Tighten fixing bolt to 20 Nm + torque a further 90° (
1
/
4
turn).
–
Install the cover for the chain sprocket of the oil pump
-A-
.
–
Installing the oil pan
→ Chapter
.
