Testing oil pressure and oil pressure switchF1
Testing oil pressure and oil pressure switch -F1-
Special tools and workshop equipment required
t
Oil pressure tester, e.g. -V.A.G 1342-
t
Voltage tester, e. g. -V.A.G 1527 -
t
Measuring tool set, e.g. -V.A.G 1594 C -
Test sequence
–

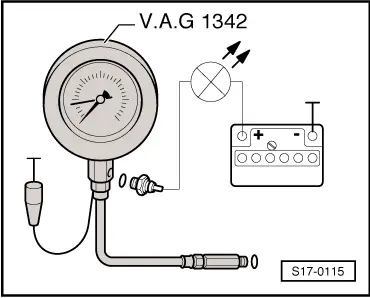

Remove oil pressure switch -F1 - and screw into testing device.
–
Screw tester in the cylinder head instead of the oil pressure switch.
–
Connect brown cable of tester to earth (-).
–
Connect voltage tester to battery positive terminal (+) and to oil pressure switch.
If the LED lights up:
–
Replace oil pressure switch -F1-.
If the LED does not light up:
–
Start engine and slowly increase engine speed.
Given an oil pressure of 0.03...0.07 MPa (0.3...0.7 bar) the LED must light up, otherwise replace the oil pressure switch.
–
Increase engine speed further.
At an engine speed of 2000 rpm and an oil temperature of 80°C the oil pressure should be at least 0.2 MPa (2 bar).
At a higher engine speed the oil pressure must not be greater than 0.7 MPa (7 bar).
