Superb
Body
Body Work
Bumper
Front bumper
Removing and installing the bumper bracket
Removing and installing the bumper bracket
Removing
–
Removing the bumper
→ Chapter
.
–

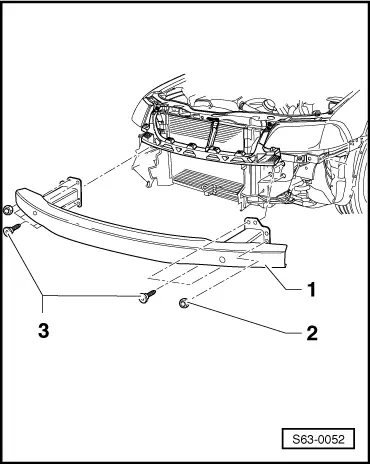

Take hose for headlight cleaning system out of clips on bumper bracket.
–
Loosen screws
-3-
(40 Nm) and nuts
-2-
(6 Nm) and remove bumper bracket
-1-
.
Install
Installation is carried out in the reverse order.
