Removing and installing the fuel tank
Removing and installing the fuel tank
Special tools and workshop equipment required
t  Engine/gearbox jack, e.g. -V.A.G 1383 A-
l  The fuel tank must be empty for weight reasons when removing it, if necessary suction the fuel out of the fuel tank → Chapter.
Removing
  Note
t  Observe safety measures when working on the fuel system → Chapter.
t  Rules of cleanliness when working on the fuel supply system → Chapter.
–  Switch off all electrical components and withdraw key from ignition key housing.
–  Remove rear seat bench with brackets → Body Work → Rep. gr.72.
–  Remove floor covering under the rear seat bench.

–  Unclip the cover -4- with the fuel pump control unit -J538--1-.
Vehicles with auxiliary heating.
–  Unplug the 2-pin plug of the dosing pump -V54-.
–  Remove the rubber grommet from the cover of the fuel delivery unit and pull out the wiring.
Continued for all vehicles
  S20-0159
–  Unplug the 5-pin plug -1- from the fuel tank.
  M20-0232

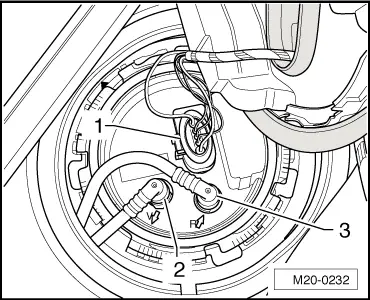

–  Remove the cover of the fuel gauge sender -2- -G169- (in the figure on the right) and unplug the plug -right arrows-.
–  Open the fuel tank cap and clean around the fuel filler neck.
–  Unscrew the cap from the fuel filler neck.
–  Close the opening of the fuel filler neck with a clean foam piece, so that no dirt can penetrate.
–  Remove the rear right wheelhouse liner → Body Work → Rep. gr.66.
  S20-0267
–  Unscrew screws -1- for filler neck on the body.
–  Unclip the electrical cable from the bracket -2- at the top and bottom of the filler neck.
  S20-0245
–  Disconnect vent line -1- (white) and fuel feed line -2- (black) at the connection point.
  Note
Press in the securing ring in order to unlock the line.
Vehicles with auxiliary heating.
–  Separate the fuel line from the dosing pump -V54-.
Continued for all vehicles
  S20-0163
–  Remove rear tunnel bridge -arrows-.
–  Unhook the rear part of the exhaust system from two retaining straps in front and behind the front silencer.
–  Slacken nuts of double clamp.
–  Remove screws for rear exhaust pipe hanger.
–  Remove rear part of exhaust system.
–  Remove propshaft → Gearbox → Rep. gr.39.
  A10-10248
–  Disconnect plug -arrow- at four-wheel drive control unit -J492-.
  S20-0248
–  Unhook the wiring loom -arrows- and place it to the side.
–  First unscrew screws -2, 5- and -6-.
–  Support the fuel tank using the engine/gearbox jack -V.A.G 1383 A-.
–  Unscrew the screws for the tensioning straps -1, 3, 4- and -7-.
  A20-1209
–  Lower slightly the fuel tank using the engine/gearbox jack -V.A.G 1383 A-.
–  Then remove the fuel tank from the engine/gearbox jack -V.A.G 1383 A- and pull through the filler neck between the body and the rear axle with the help of a second mechanic.
Install
–  Check both earth connections for corrosion, if necessary remove corrosion.
  A20-1208

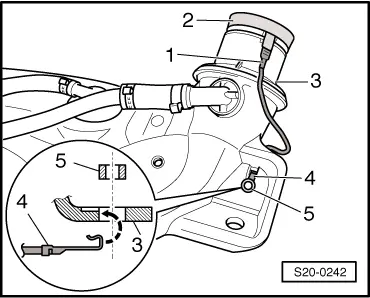

–  Check fitting position of the earth lead -1-.
l  The plug -1- must tightly fit on the plate ring -2-.
l  The contact tab -4- must be hung in the fuel tank -3- and secured with the spacer bush -5-.
–  Guide the filler neck between rear axle and structure with the assistance of a 2nd mechanic. Then position the fuel tank onto the engine/gearbox jack -V.A.G 1383 A-.
Further installation occurs in reverse order. Pay attention to the following:
t  Lay the vent and fuel lines without any kinks.
t  Do not mix-up the feed line and the return-flow line (the return-flow line is blue, the feed line is black).
t  Make sure the line connections fit tightly.
t  Check the earth connection of the fuel tank at the body on the filler neck.
t  After installing the fuel tank, check whether the lines are also clipped in place on the fuel tank.
  S20-0242
–  Clip on cover -4- with fuel pump control unit -J538--1-.
   The arrow -2- on the cover points in direction of travel.
  S20-0159
