Forester F4-2.5L SOHC (2004)
Front Door Exterior Handle: Service and Repair
REMOVAL
1. Remove the door trim.
CAUTION: Do not use excessive force to remove the door panel. This will deform it.
2. Remove the sealing cover.
3. Remove the front inner remote.
4. Disconnect the cable from cable holder to make cable move freely.

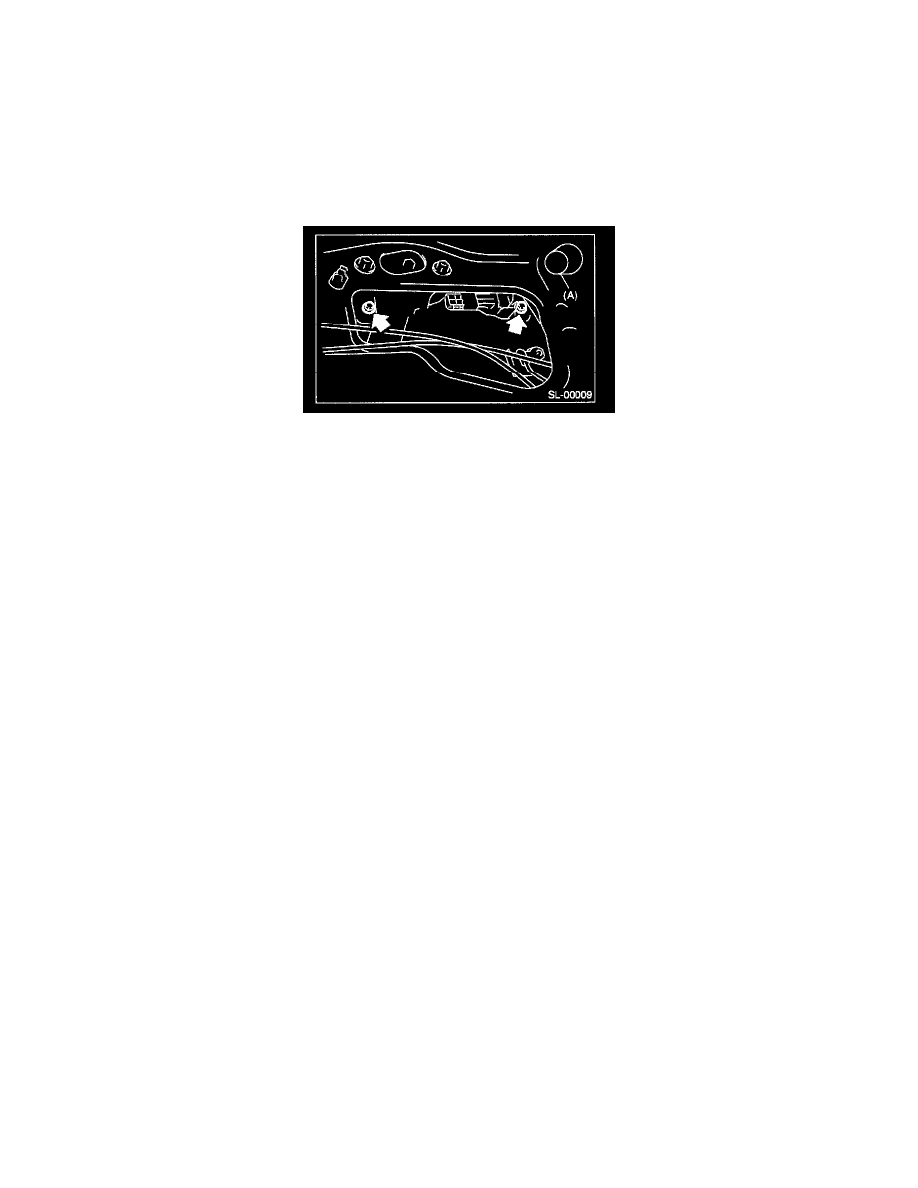

5. Remove two bolts and rod clamp, and then remove the front outer handle.
NOTE: The rear bolt can be removed from service hole (A) of inner panel by adjusting the glass position.
INSTALLATION
Install in the reverse order of removal.
NOTE: Make sure the outer handle works properly after installation.
