Page 4
background image

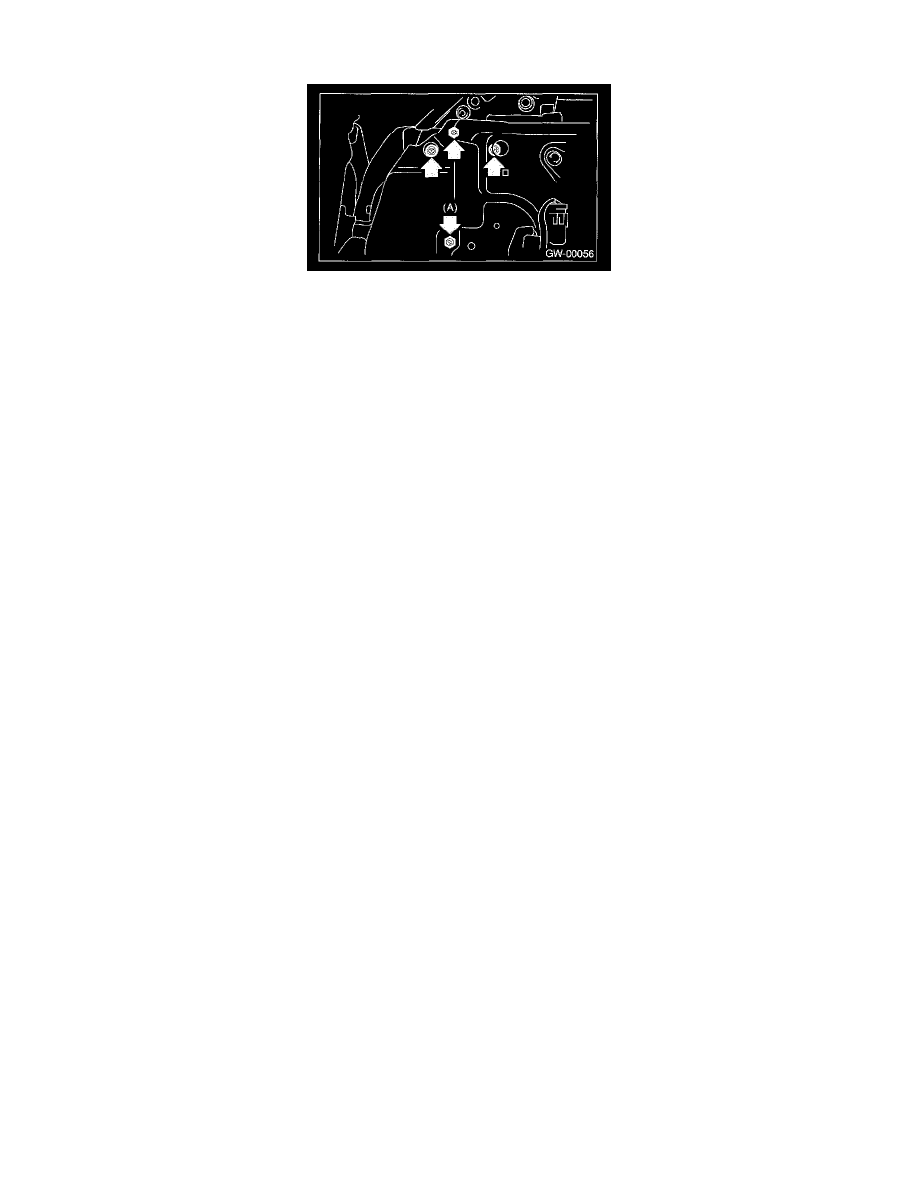

12. After adjustment to glass, close the door If there is a gap between outer lip of gusset and glass surface, adjust the gap with adjusting nut A. in

lower fitting part of the gusset to prevent generation of wind noise.

13. During adjustments, loosen the other three clamping screws.
14. After adjustment, tighten the bolts and nuts.
