Forester F4-2.5L SOHC (2004)
Lateral Accelerometer: Service and Repair
G Sensor

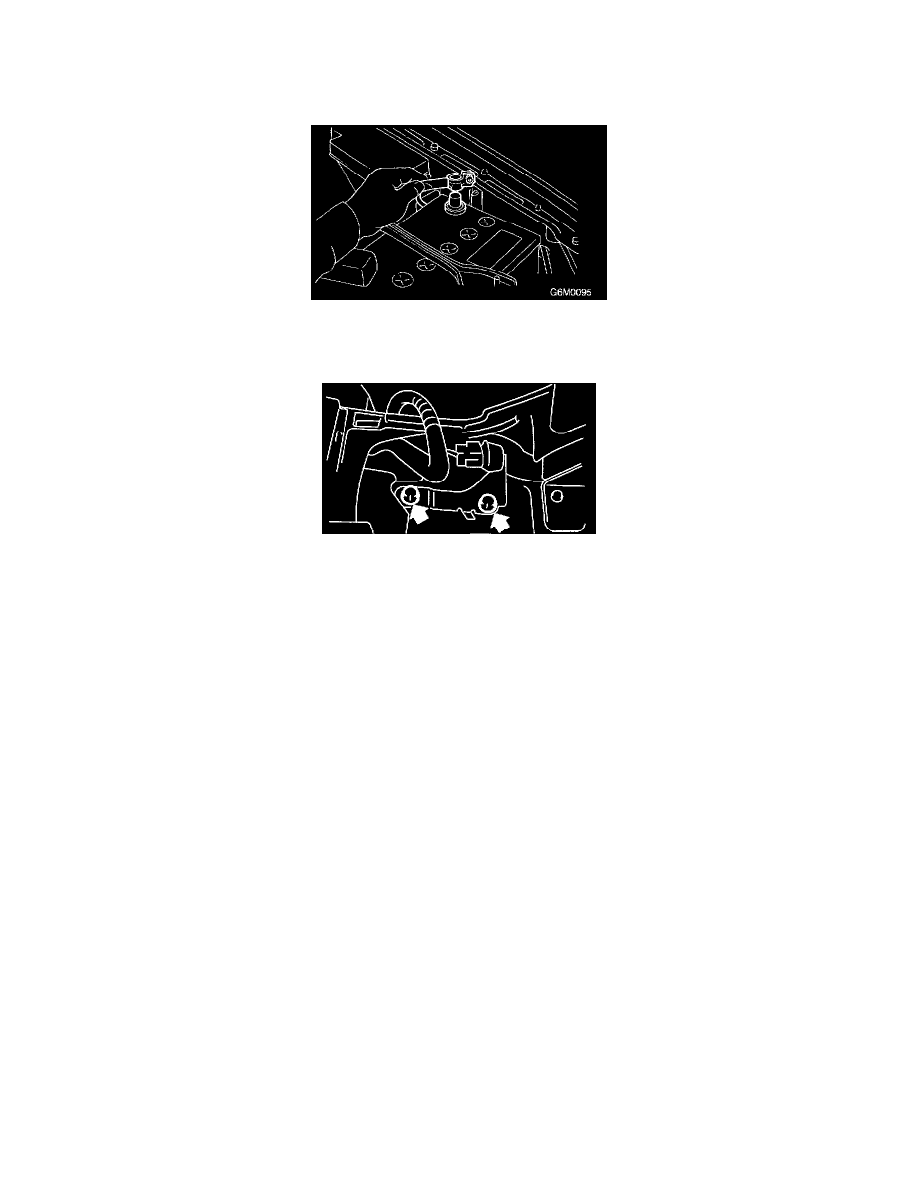

REMOVAL
1) Disconnect the ground cable from battery.
2) Remove the console cover.
3) Disconnect the connector from G sensor.
4) Remove the G sensor from body.
CAUTION:
^
Do not drop or bump the G sensor.
^
G sensor and the bracket are integrated into one unit. Therefore, do not disassemble it.
INSTALLATION
1) Install in the reverse order of removal.
CAUTION: Do not drop or bump the G sensor.
Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
