Page 8
background image

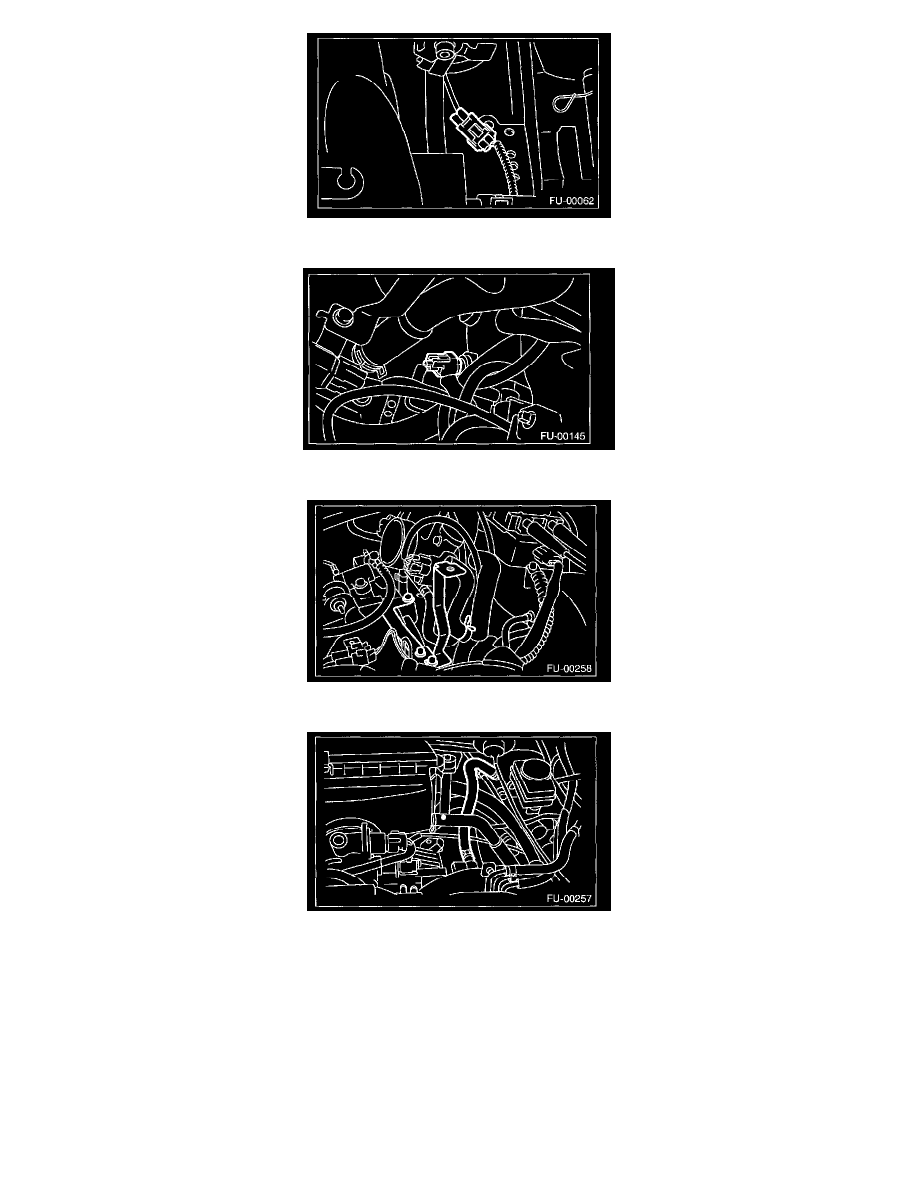

6. Connect the knock sensor connector.

7. Connect the connectors to the engine coolant temperature sensor.

8. Install the air cleaner case stay RH and engine harness bracket, and connect the engine harness connectors to the bulkhead connectors.

9. Connect the brake booster hose.
