Page 10
background image

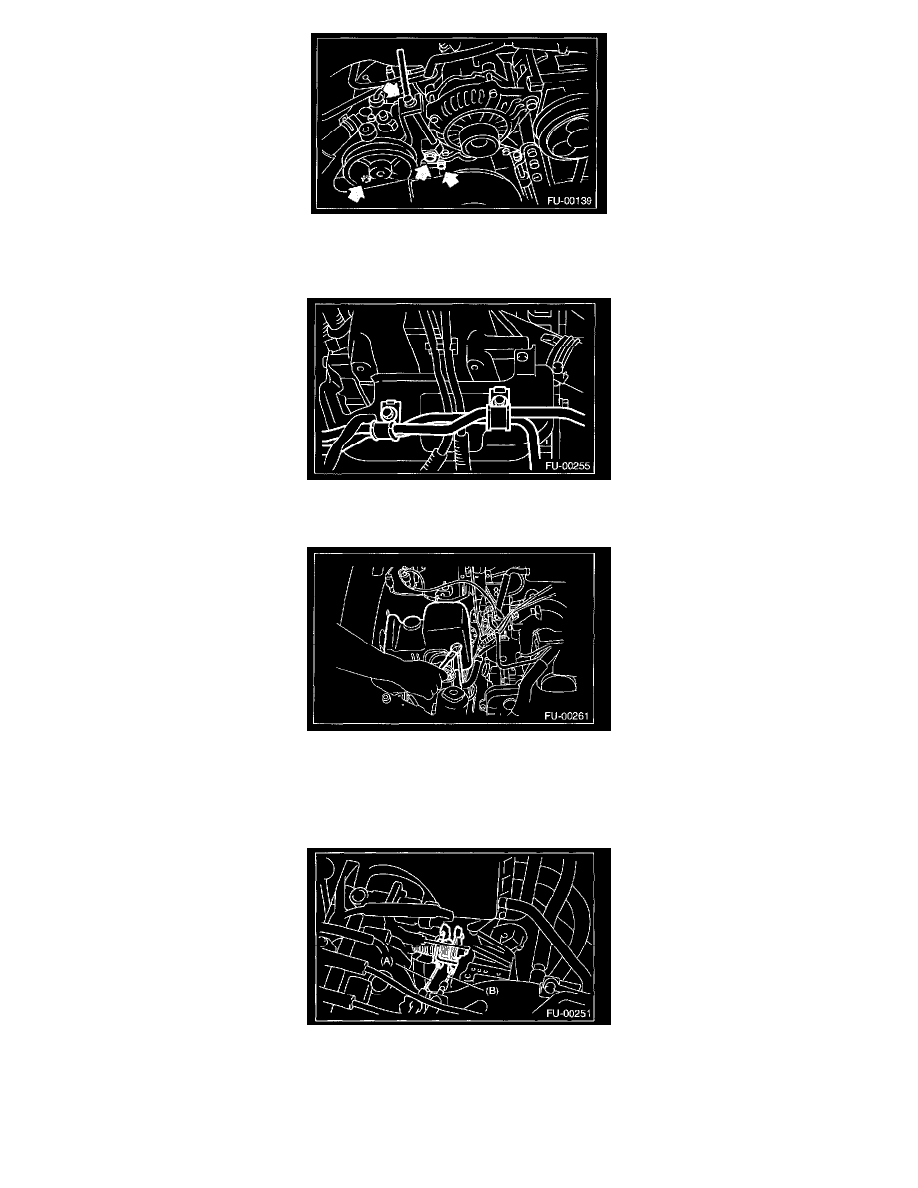

3. Tighten the bolts which install power steering pump bracket.

Tightening torque: 22 N.m (2.2 kgf.m, 15.9 ft.lb)

4. Install the power steering pipes onto the right side intake manifold protector.
5. Install the front side V-belt.

6. Install the resonator chamber.

Tightening torque: 33 N.m (3.4 kgf.m, 24.6 ft.lb)

14. Connect the accelerator cable (A).

15. Connect the cruise control cable (B). (With cruise control models)
16. Install the air intake duct and air cleaner case.
