Forester F4-2.5L SOHC (2004)
Control Assembly: Service and Repair
Control Unit
REMOVAL
1. Disconnect the ground cable from battery.
2. In case of manual A/C, remove the mode cable and air-mix cable from links of heater unit.
3. Remove the front cover.
4. Remove the center console panel.

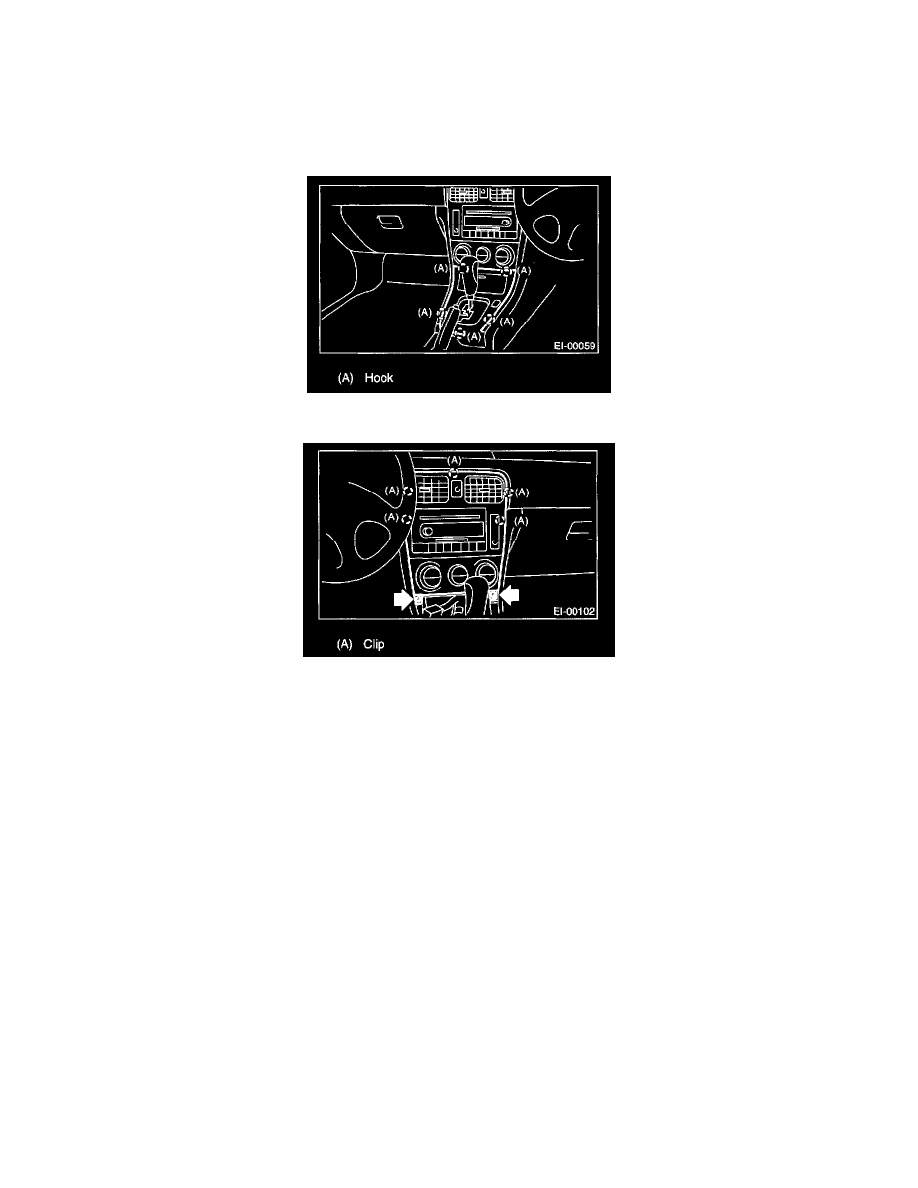

5. Loosen the screws on rear side of center console panel, and then remove the control unit.
INSTALLATION
Install in the reverse order of removal.
