Courtesy Lamp: Service and Repair

Room Light

REMOVAL

1. Disconnect the ground cable from battery.

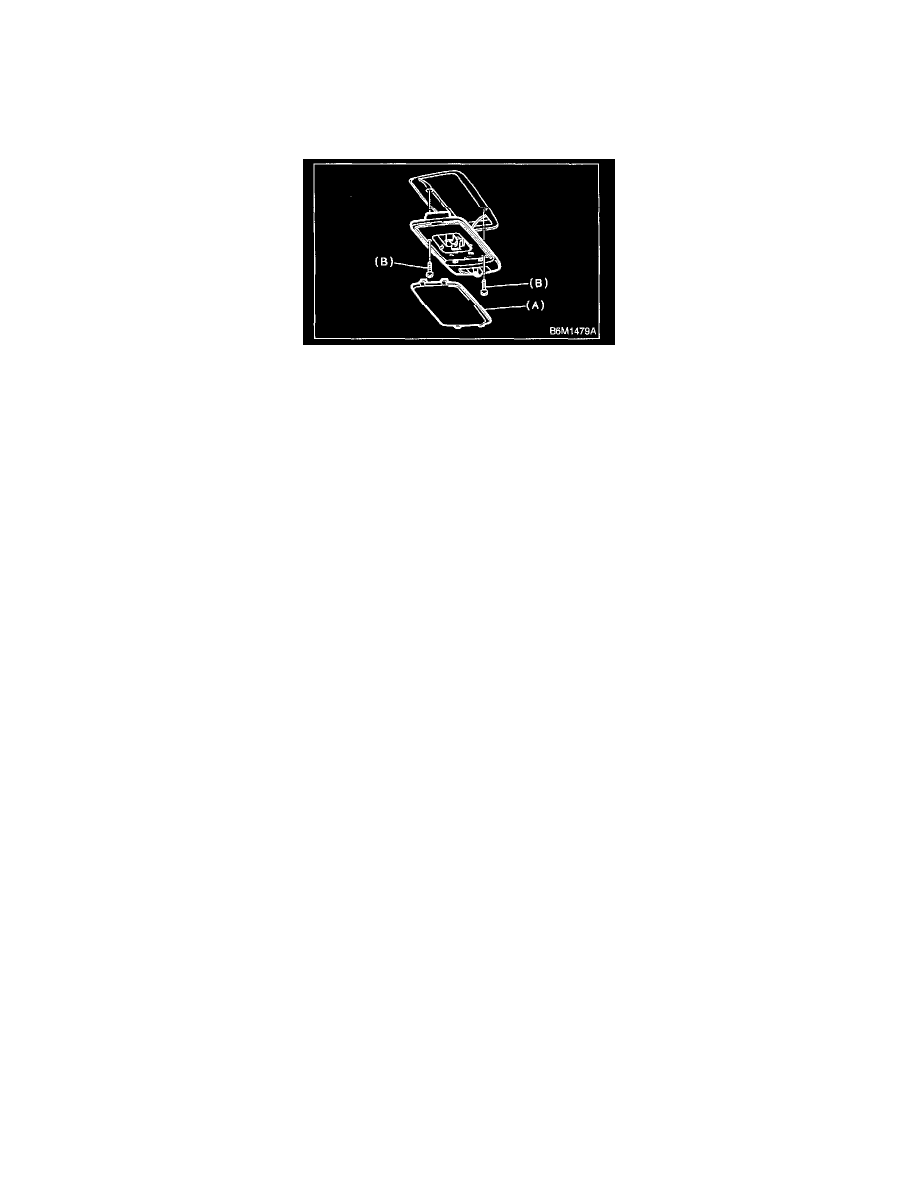

2. Remove the lens (A) and room light mounting screws (B).
3. Disconnect the harness connectors and remove the light.

INSTALLATION

Install in the reverse order of removal.
