Forester F4-2.5L SOHC (2004)

Page 1
background image

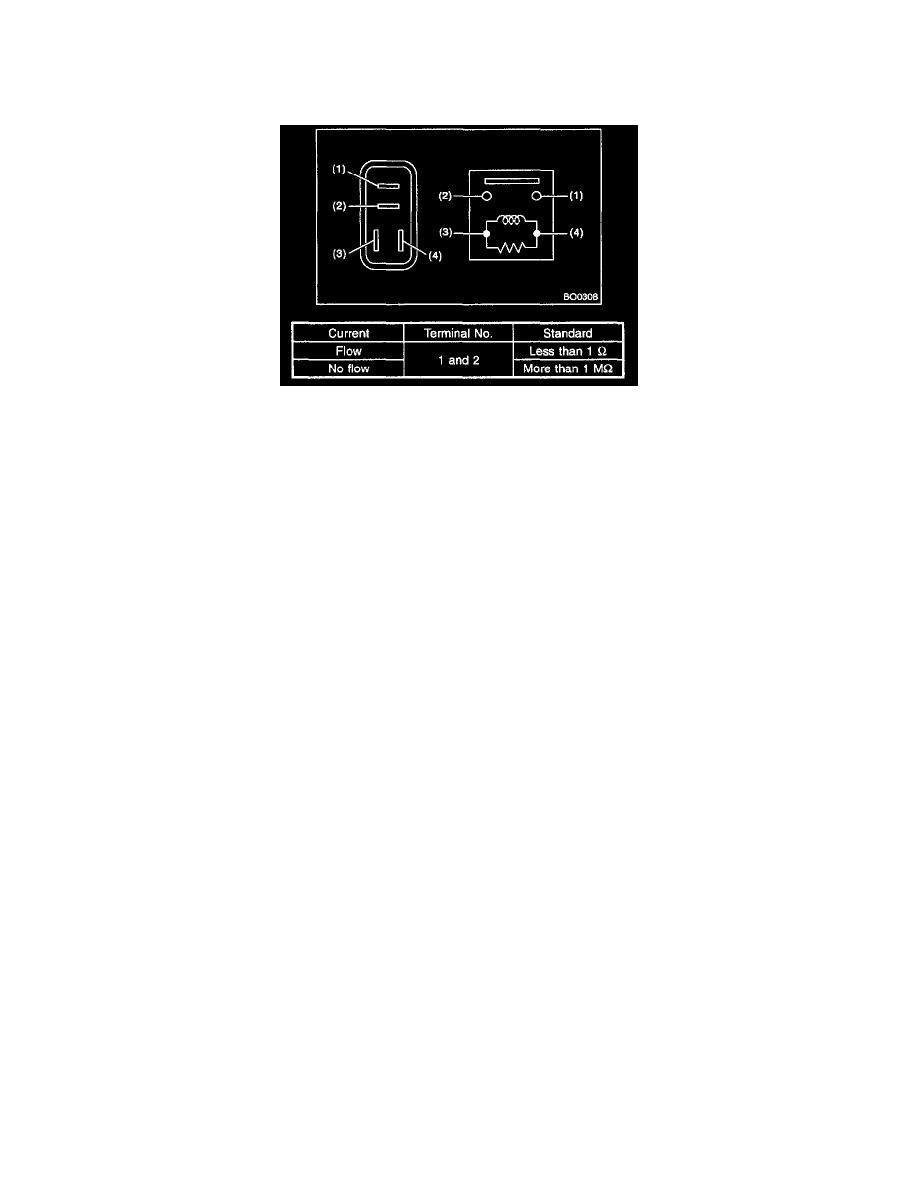

Fog/Driving Lamp Relay: Testing and Inspection

INSPECTION

FRONT FOG LIGHT RELAY

Measure the front fog light relay resistance between terminals when connecting terminal No. 4 to battery positive terminal and terminal No. 3 to battery
ground terminal.
