Forester F4-2.5L SOHC (2004)
Combination Switch: Testing and Inspection
Combination Switch (Light)
INSPECTION

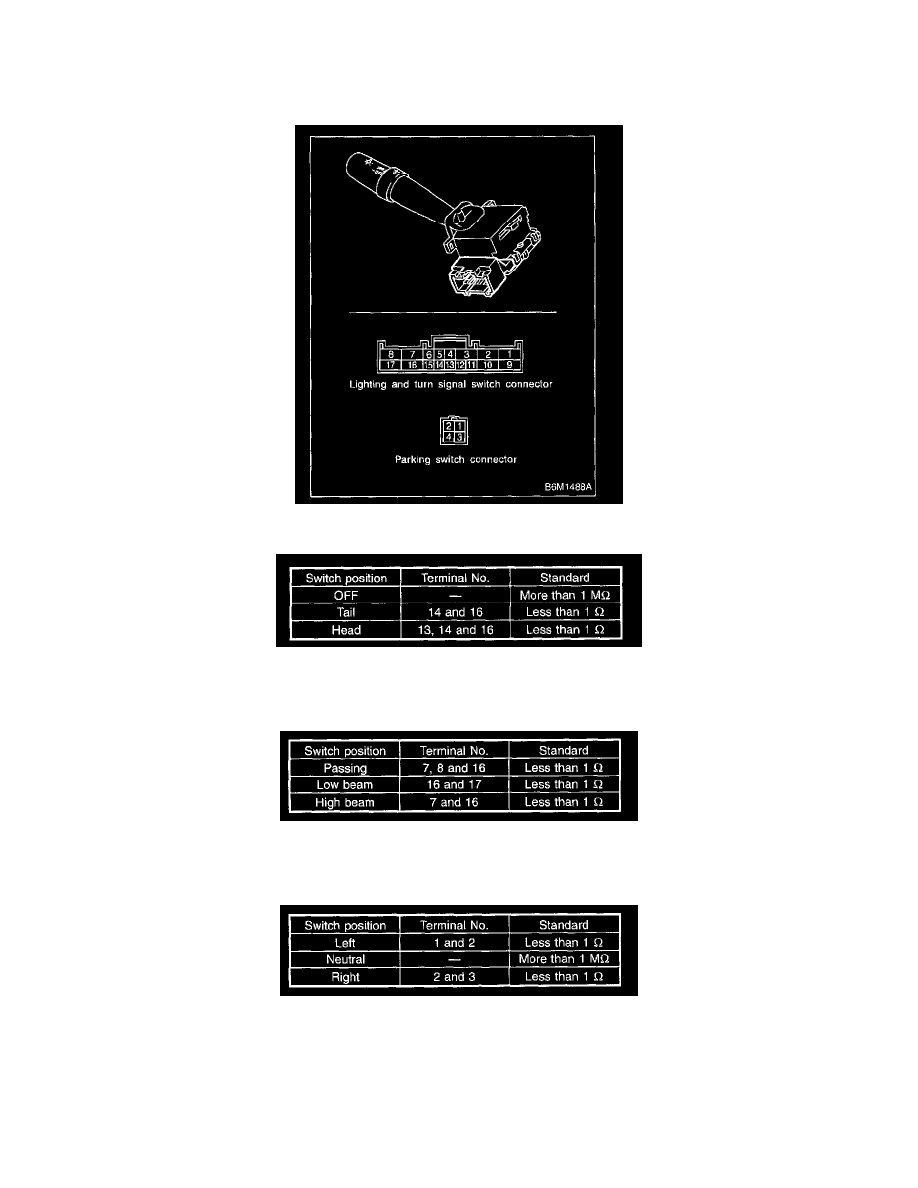

Measure the combination switch resistance.
1 - Lighting Switch
1.
LIGHTING SWITCH
2 - Dimmer and Passing Switch
2.
DIMMER AND PASSING SWITCH
3 - Turn Signal Switch
3.
TURN SIGNAL SWITCH
