Forester F4-2.5L SOHC (2004)

Page 3
background image

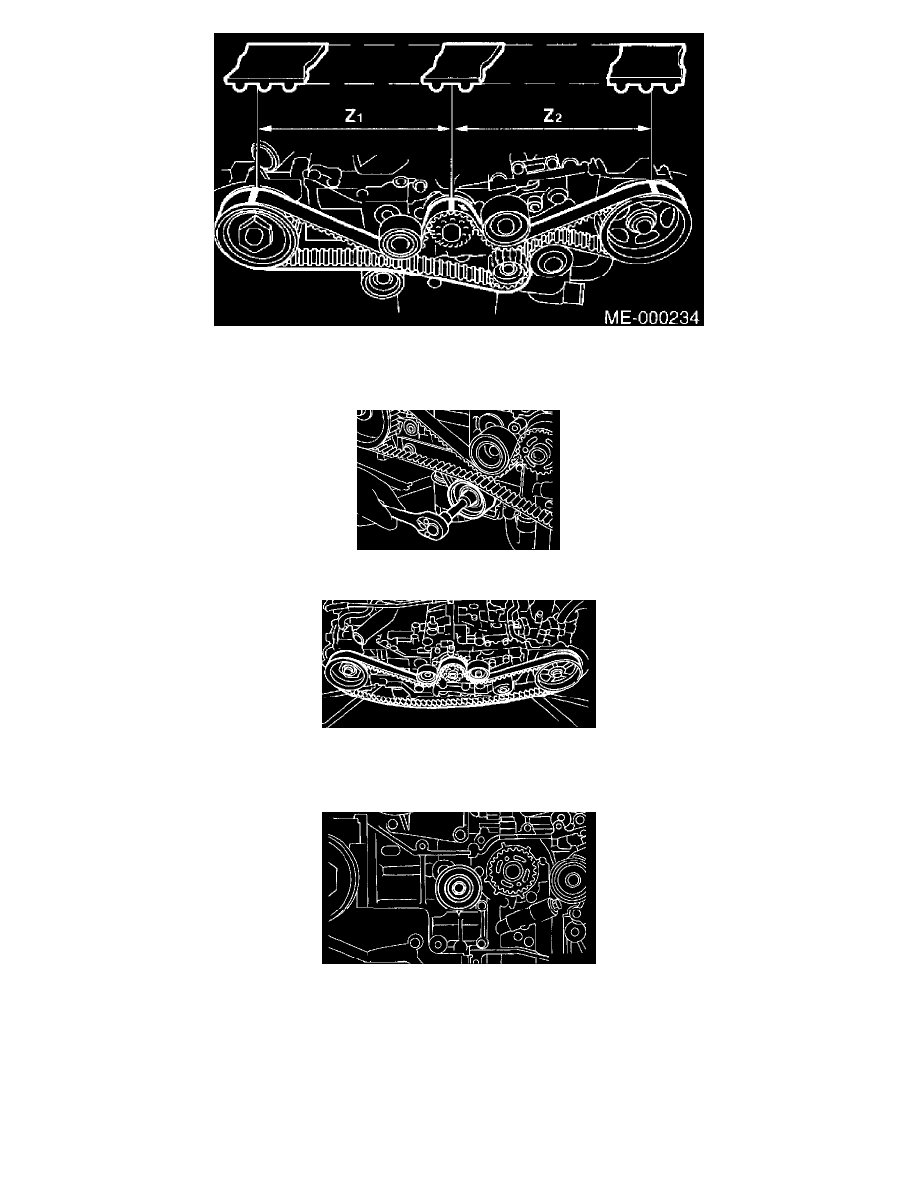

Z1: 46.8 tooth length
Z2: 43.7 tooth length

6. Remove the belt idler (No. 2).

7. Remove the belt idler No. 2.

8. Remove the timing belt.

BELT IDLER AND AUTOMATIC BELT TENSION ADJUSTER ASSEMBLY

1. Remove the belt idler (No. 1).
