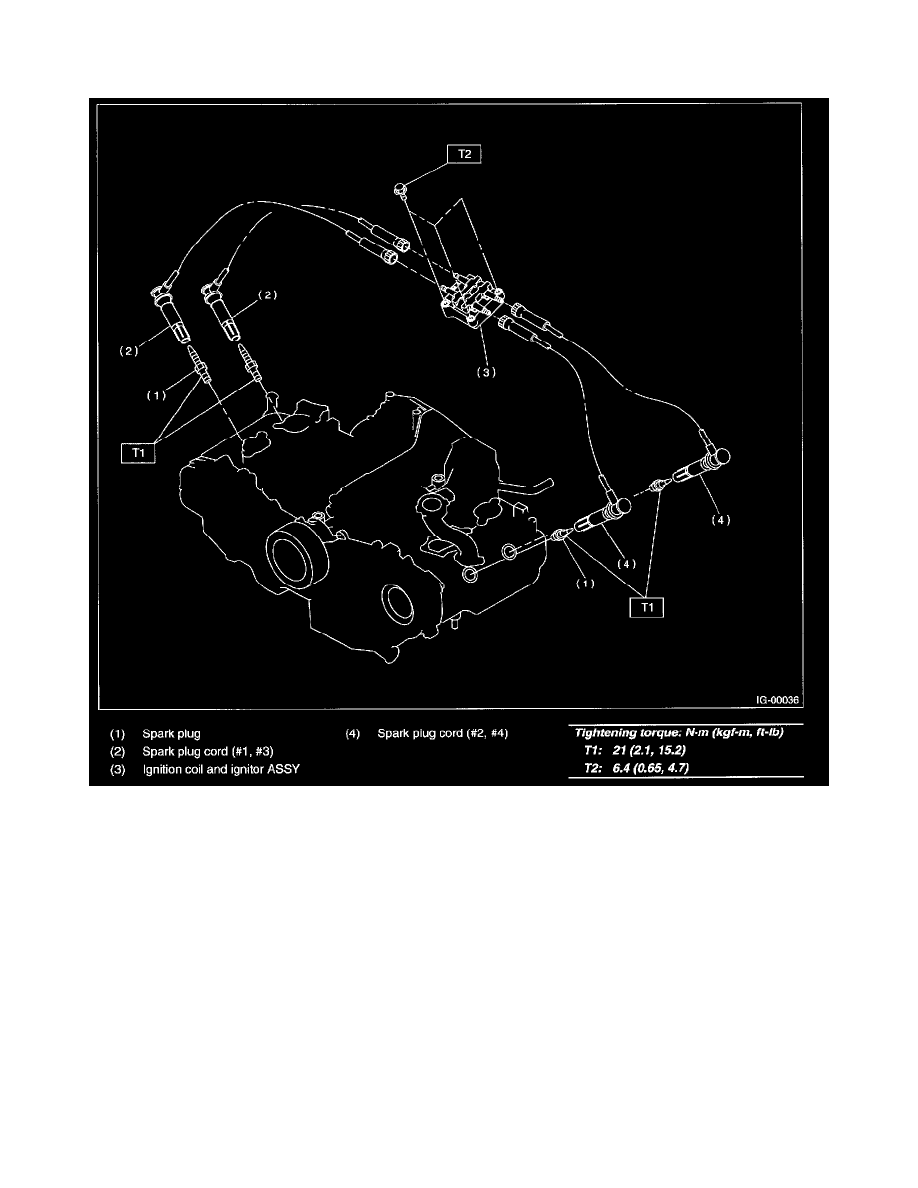

1. Disconnect the ground cable from battery.
2. Remove the resonator chamber.

3. Remove the spark plug cords by pulling boot, not the cord itself.

4. Remove the spark plugs with spark plug sockets.

LH SIDE

1. Disconnect the around cable from battery.
