Forester F4-2.5L SOHC (2004)
8) Remove the pressure gauges from FL and FR caliper bodies.
9) Remove the air bleeder screws from the RL and RR caliper bodies.
10) Connect the air bleeder screws to the FL and FR caliper bodies.
11) Connect two pressure gauges to the RL and RR caliper bodies.
12) Bleed air from the pressure gauges and the FL and FR caliper bodies.
13) Perform the ABS sequence control.
14) When the hydraulic unit begins to work, at first the RR side performs decompression, holding, and compression, and then the RL side performs
decompression, holding, and compression.

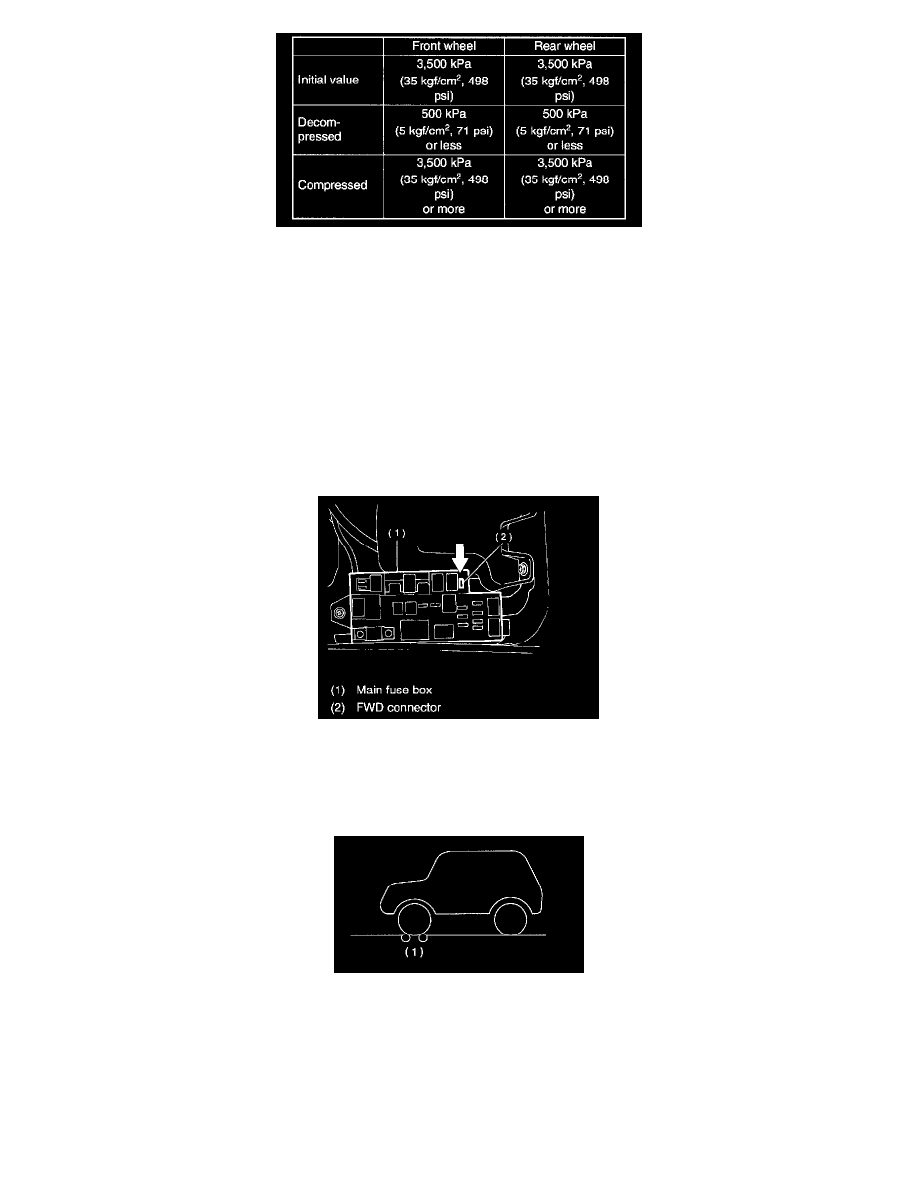

15) Read values indicated on the pressure gauges and check if they meet the standard value.
16) After checking, remove the pressure gauges from caliper bodies.
17) Connect the air bleeder screws to RL and RR caliper bodies.
18) Bleed air from the brake line.
CHECKING THE HYDRAULIC UNIT ABS OPERATION WITH BRAKE TESTER
1) In the case of AWD AT vehicles, install a spare fuse with the FWD connector in the main fuse box to simulate FWD vehicles.
NOTE: The AWD circuit of MT vehicles can not be disabled because viscous coupling is used inside center differential.
2) Prepare for operating the ABS sequence control.
