Forester F4-2.5L SOHC (2004)
14)

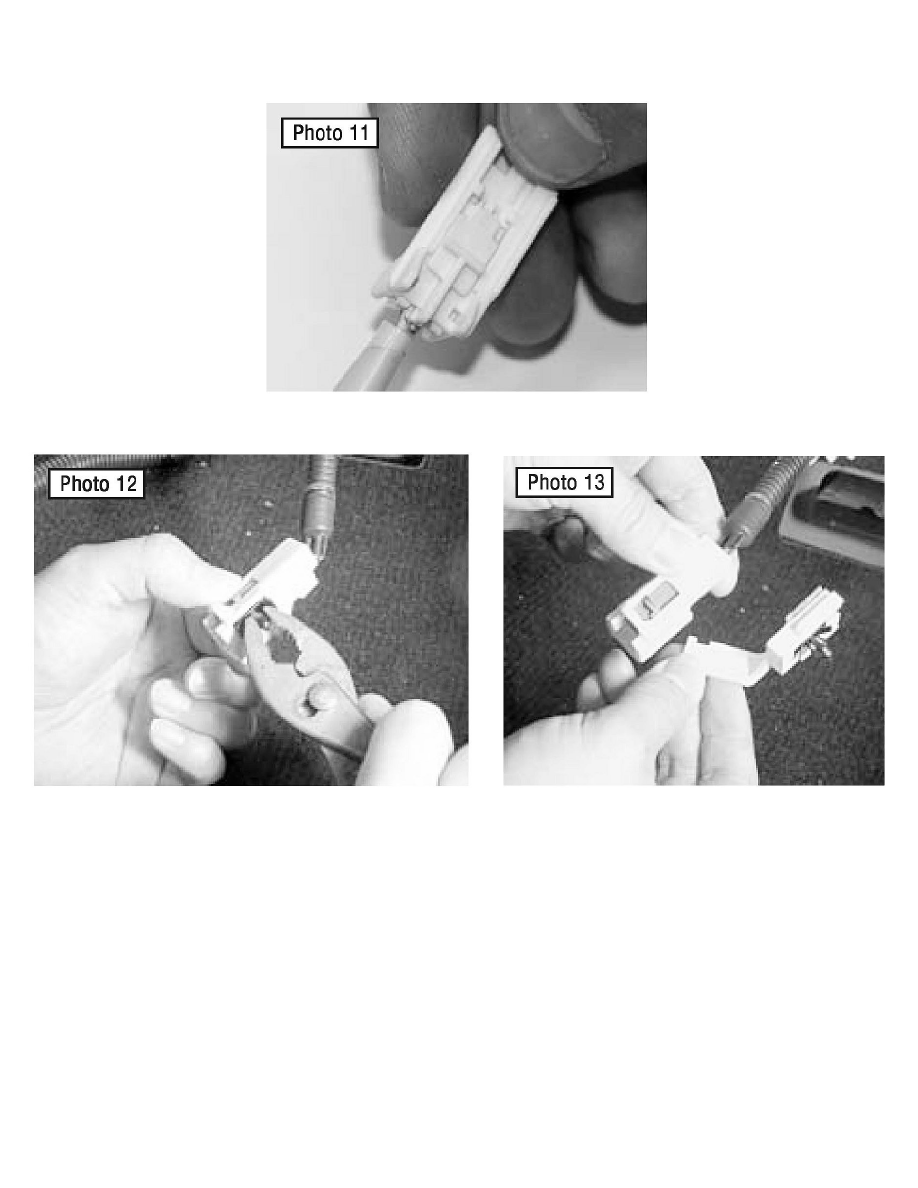

Using new connector provided in kit, insert both terminals into same side of connector that they came out of as shown in Photo 10. Be sure they
are inserted fully and retainers engage. Gently tug on wires to confirm they are locked.
15)
Slide new connector cover into place as shown in Photo 11. Confirm that cover and wires are tight.
16)
Remove the connector anchor clip from the seat side connector. Slide the new connector anchor clip into the connector support, then the connector
into the support. See Photos 12 and 13.
