Forester F4-2.5L SOHC (2004)
Malfunction Lamp / Indicator: Testing and Inspection
Airbag Warning Light Remains Off
DIAGNOSIS:
-
Fuse No.14 (in fuse box) is blown.
-
Body harness circuit is open.
-
Airbag warning light is faulty.
-
Airbag main harness is faulty.
-
Airbag control module is faulty.
CAUTION: Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from battery, and wait more
than 20 seconds before starting to work.
When inspecting the airbag main harness, disconnect the airbag module connector of the driver and passenger seats for safety reasons.

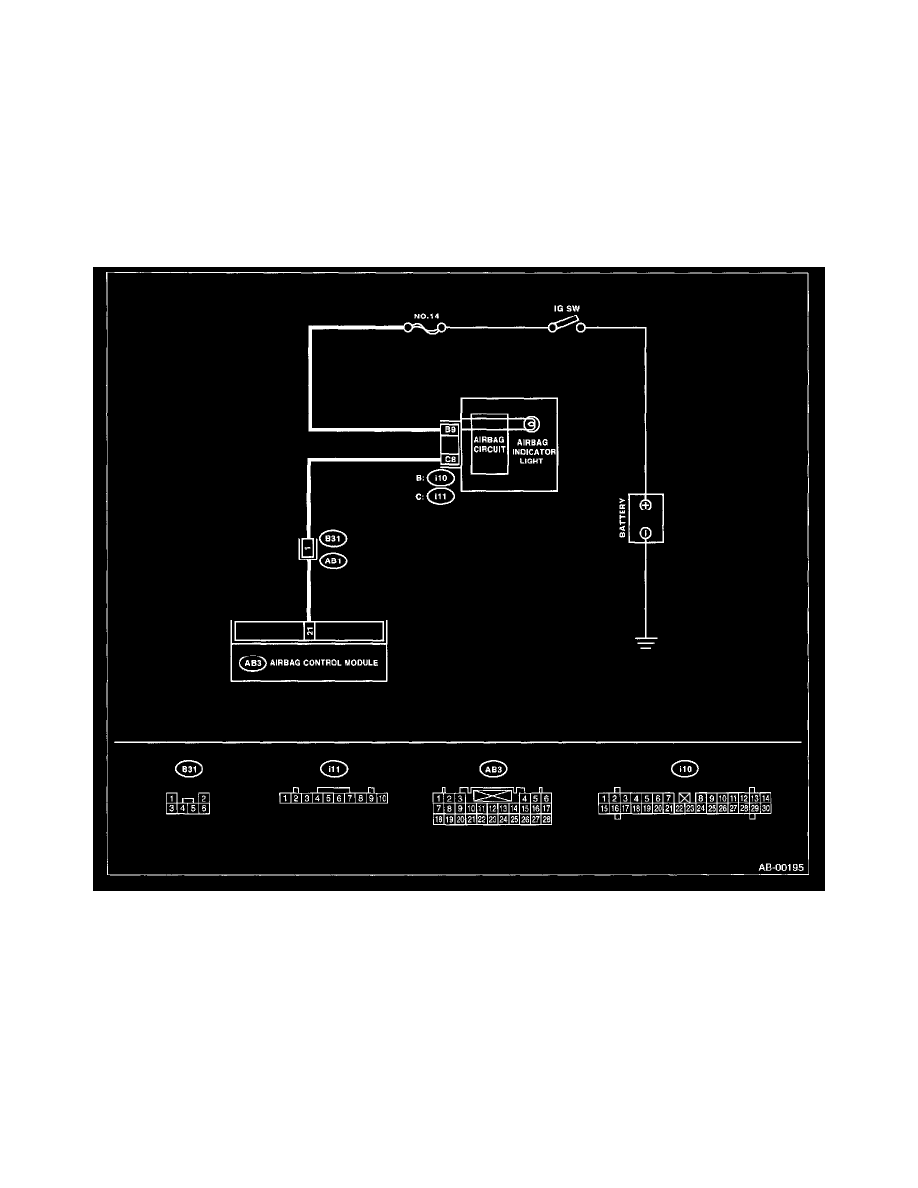

WIRING DIAGRAM
