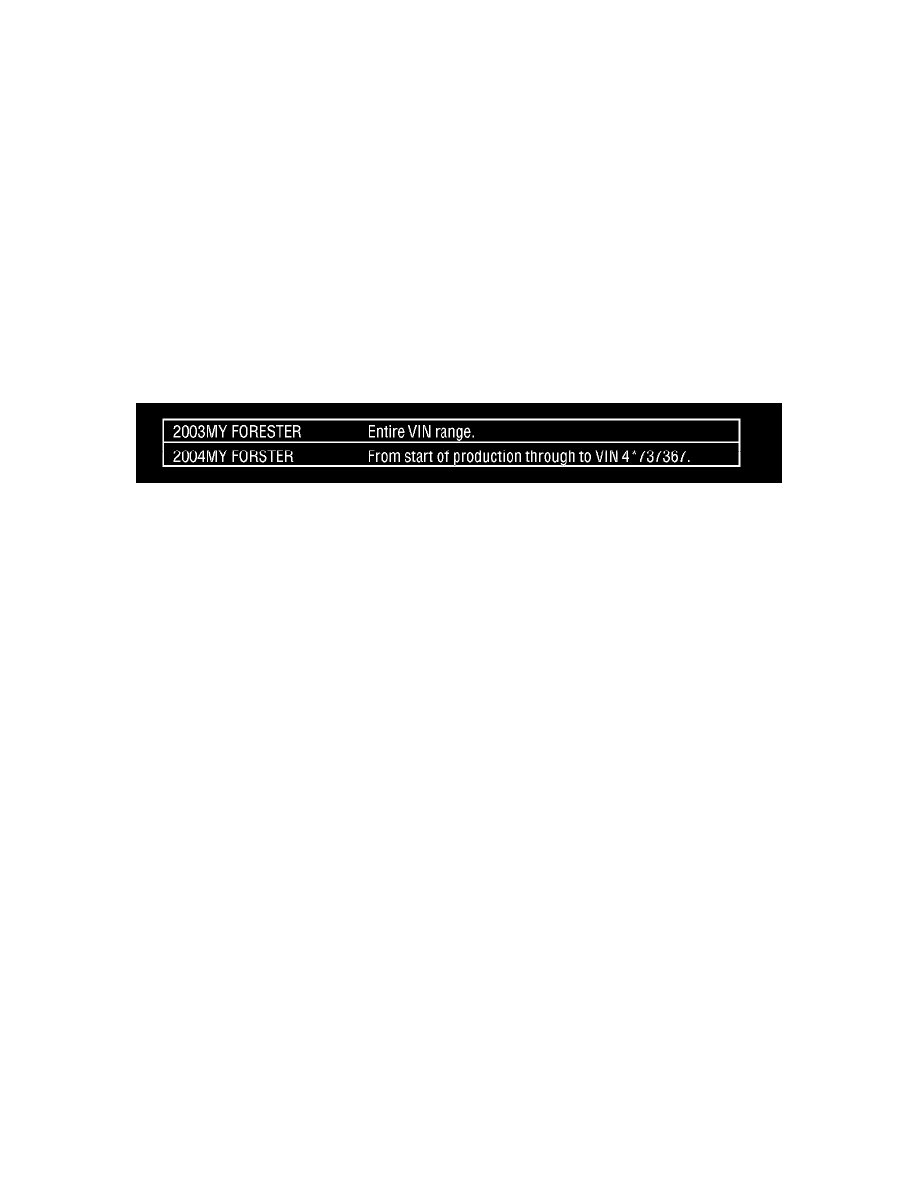

SRS - Codes 41 and 42 Set in Memory|Page 4495 > < SRS - Codes 41 and 42 Set in Memory
Page 2
background image

^

Connector support

^

Connector anchor dip

^

Wire tie (1 Spare Included)

SERVICE PROCEDURE

Special Tools Required

^

30 watt soldering iron with 1/8 "-5/32" (3-4 mm) tip

^

60/40 (lead/tin) Rosin core s&der with diameter of approximately 0.040" (1 mm)

^

Pin removal tool

^

Heat sink (Radio Shack 276-1567 or equipment)

Procedure

The steps shown below are for the driver's side, however, the same steps need to be performed on the passenger's side as well.

NOTE:

It is recommended that you familiarize yourself with the procedure and practice soldering on a scrap harness to become accustomed to the specific
solder and soldering iron in use.

If you have any questions about any part of the procedure, contact the Subaru Technical Assistance Helpline. Do not reuse any of the original parts
from the connector. If you should need any additional part,s obtain a new kit.

First, verify that the side airbag wiring harness is routed properly.

1)

Know and follow all cautionswarnings, and working precautions in Subaru Service Manual related to the airbag system and electrical system
prior to starting work.

2)

Record all radio presets.

3)

Disconnect the negative battery terminal and wait 20 seconds before proceeding.

4)

Remove side airbag connector from bracket by unlatching dip anchor with pliers. A new clip is provided for reinstallation.

5)

Disconnect side airbag connector, seat belt chime connector, and seat heater connector (as applicable).

6)

Slide the seat as far back as possible, and pull the body harness with airbag connector forward.

7)

Place adequate protection on the floor of vehicle to prevent possible damage from soldering process.
