Forester F4-2.5L SOHC (2004)

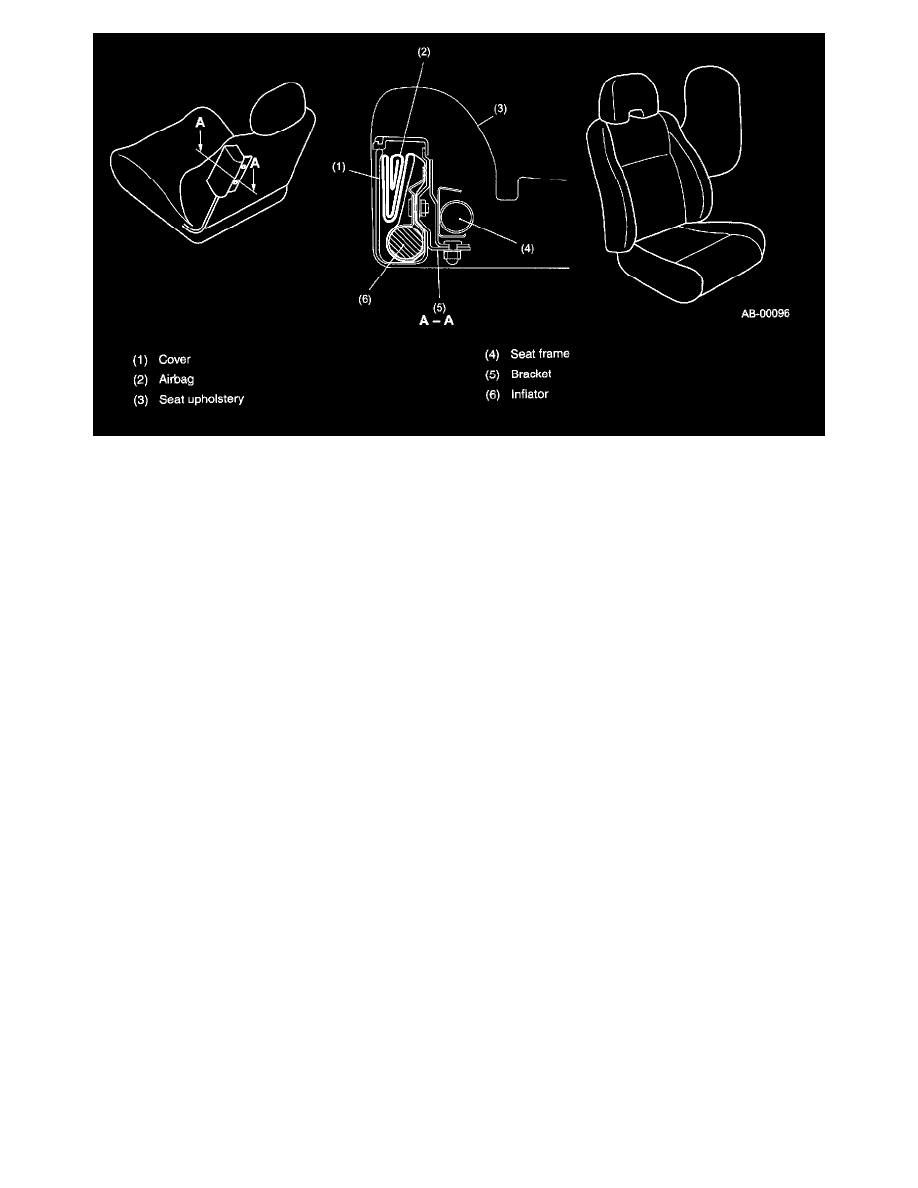

SIDE AIRBAG
A side airbag module is located at the outer side of each front seat backrest, and it contains an airbag and an inflator.
If a side-on collision occurs, the inflator produces a large volume of gas to inflate the airbag in a very short time.
AIRBAG CONNECTORS
DESCRIPTION
The airbag system uses connectors with a double lock mechanism and an incomplete coupling detection mechanism for enhanced reliability. If coupling
is incomplete, the airbag warning light comes on in the combination meter.
