Forester F4-2.5L SOHC (2004)

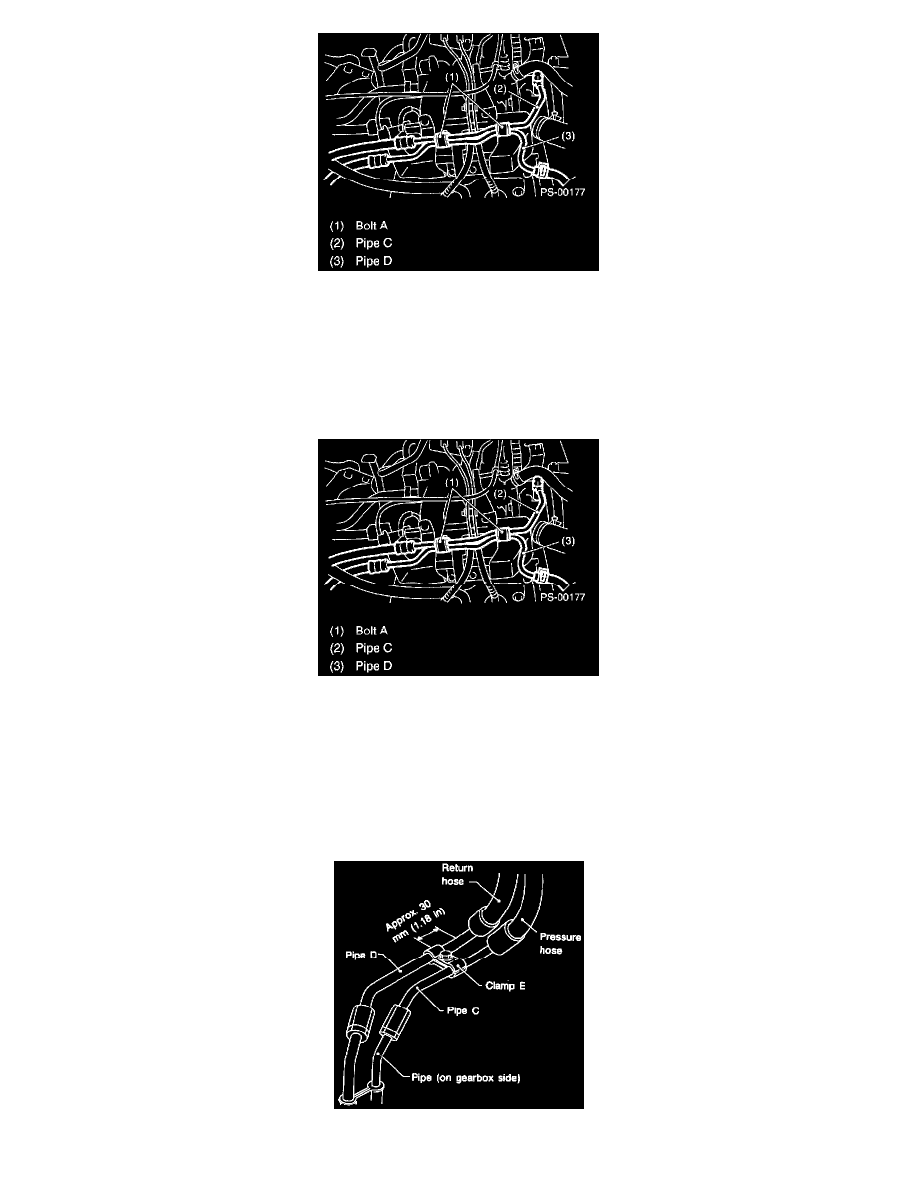

7) Remove the bolt A.
8) Disconnect the pipe C from oil pump. Disconnect the pipe D from return hose.
CAUTION:
^
Do not allow fluid from the hose end to come into contact with pulley belt.
^
To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.
INSTALLATION
1) Temporarily tighten the two bolts fixing pipe C and D. (bolt A)
NOTE: Visually check that the hose between tank and pipe D is free from bending or twisting.
1) Connect the pipe D to oil tank.
2) Using a new gasket, connect the pipe C to oil pump.
Tightening torque: 39 Nm (4.0 kgf-m, 28.9 ft. lbs.)
3) Tighten the two bolts fixing pipe C and D. (bolt A)
Tightening torque: 13 Nm (1.3 kgf-m, 9.4 ft. lbs.)
2) Temporarily connect the pipe C and D to gear box.
