Forester F4-2.5L SOHC (2004)
Transmission Speed Sensor: Service and Repair

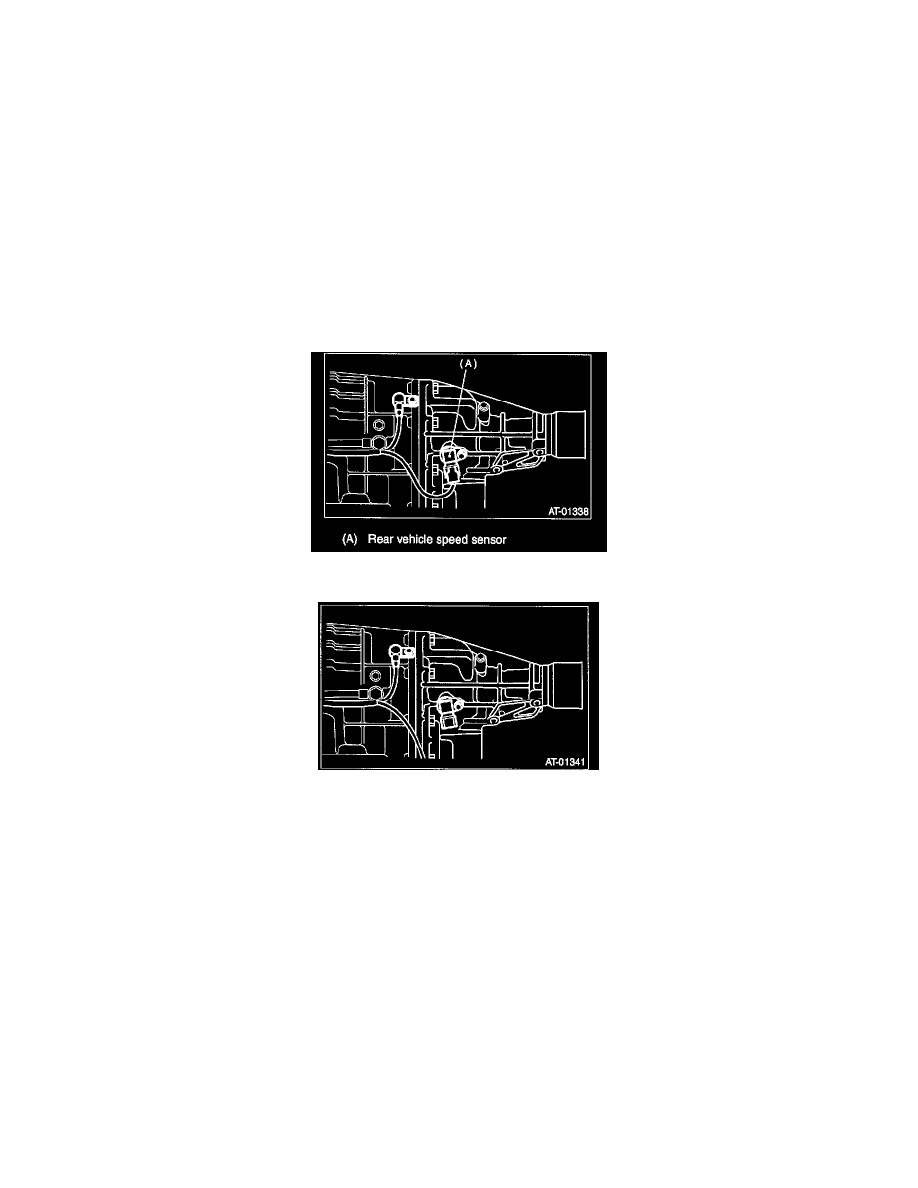

Rear Vehicle Speed Sensor
Rear Vehicle Speed Sensor
A:Removal
1. NON-TURBO MODEL - Refer to "Front Vehicle Speed Sensor"
2. TURBO MODEL
1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Lift-up the vehicle.
4) Disconnect the rear vehicle speed sensor connector.
5) Remove the rear vehicle speed sensor.
B:INSTALLATION
1. NON-TURBO MODEL - Refer to "Front Vehicle Speed Sensor"
2. TURBO MODEL
Install in the reverse order of removal.
NOTE:
Replace the 0-ring with a new one.
Tightening torque:
7 N.m (0.7 kgf-m, 5.1 ft-lb)
