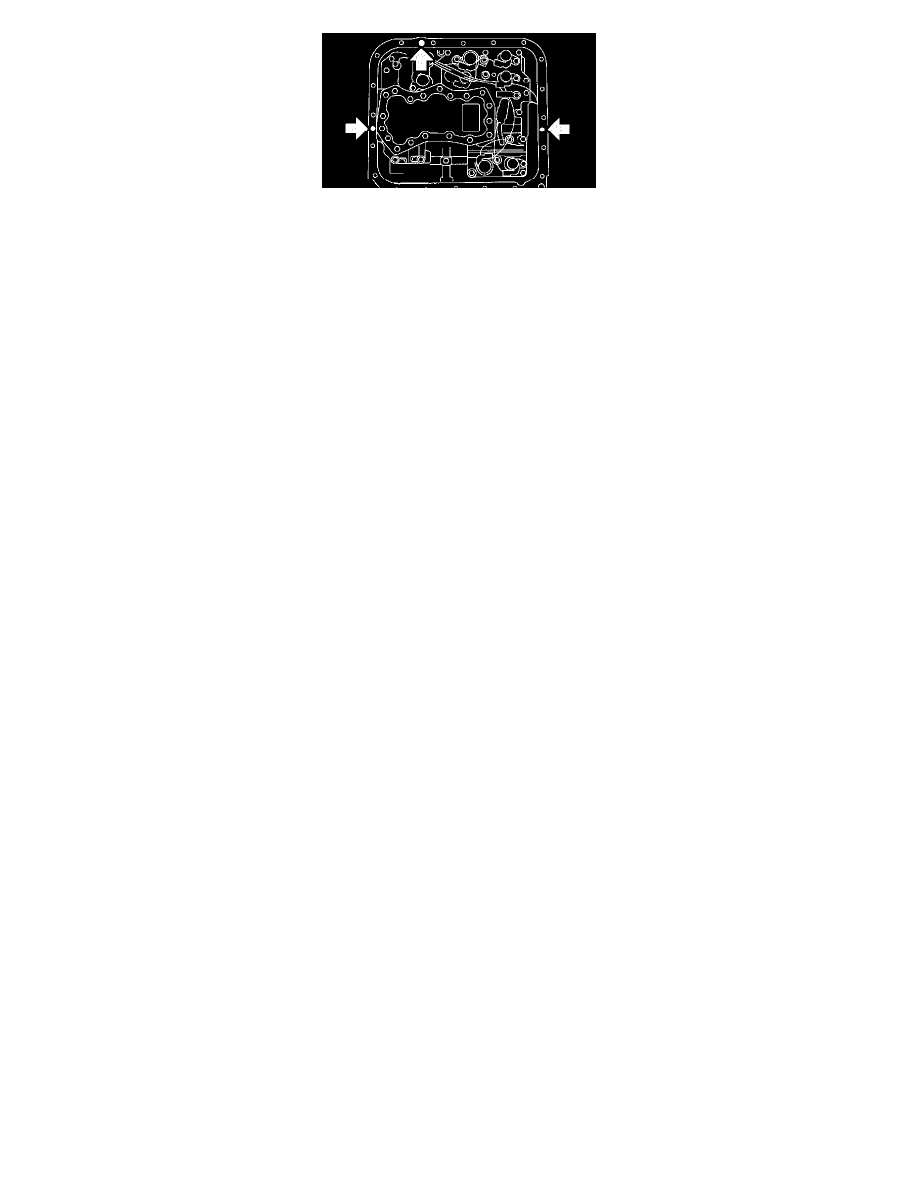

5. Apply liquid gasket fully to three holes other than screw holes on transmission case.

Fluid packing: THREE BOND 121 7B (Part No. K0877YA020)

6. Install the oil pan.

Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)

7. Fill ATF up to the middle of the "COLD" side on level gauge by using the gauge hole.
8. Check the ATF level.
