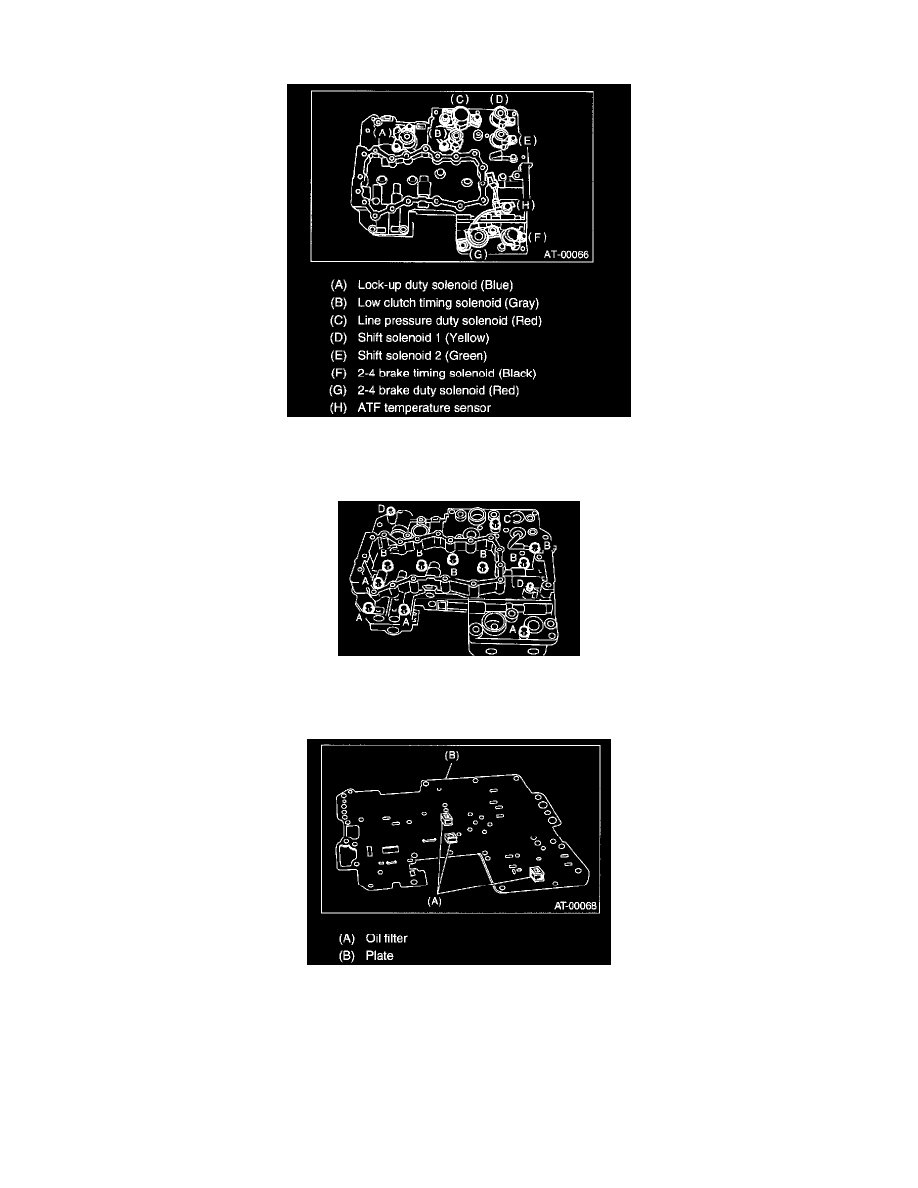

2. Remove the duty solenoids, solenoids and sensor from the lower valve body.

NOTE: Arrange the removed bolts in good order to assemble in the same place as disassembly, because the bolts length are different.

3. Remove the upper-lower valve body tightening bolts.

NOTE: Arrange the removed bolts in good order to assemble in the same place as disassembly, because the bolts length are different.

4. Remove the lower valve body.

5. Remove the oil filter and plate.
