Forester F4-2.5L SOHC (2004)

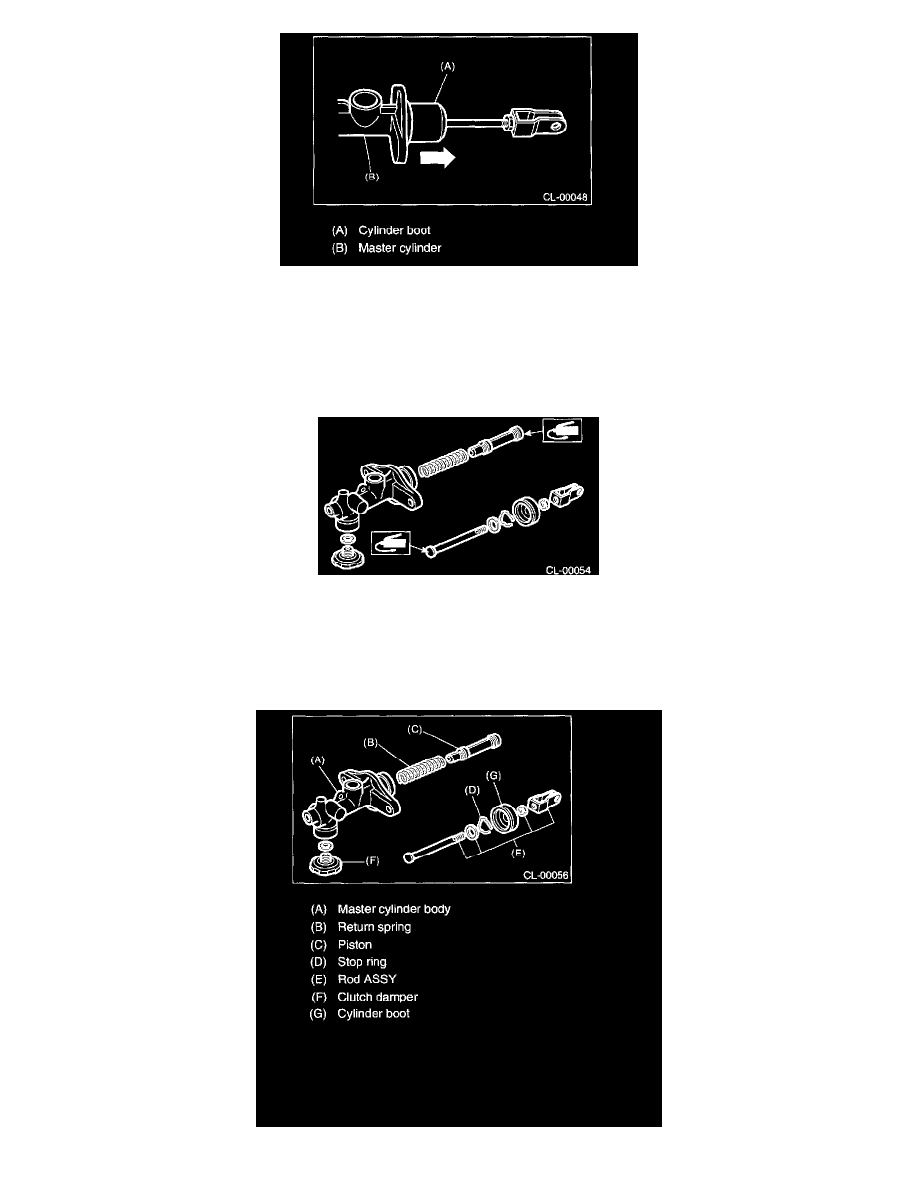

3. Move the cylinder boot backward.
4. Remove the stop ring.
CAUTION: Be careful when removing the snap ring to prevent the rod, washer, piston and return spring from flying out.
ASSEMBLY
1. Install the clutch damper.
2. Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.
Grease: SILICONE GREASE G40M (Part No. 004404003)
3. To assemble the master cylinder, reverse the sequence of disassembly procedure.
Tightening torque: 10 Nm (1.0 kgf-m, 7 ft. lbs.)
INSPECTION
