Forester F4-2.5L SOHC (2004)
9. Remove the nut which secures clutch master cylinder.
10. Remove the bolts and nuts which secure brake and clutch pedals, and remove the pedal assembly.
INSTALLATION
1. Install in the reverse order of removal.
Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
NOTE:
^
If the cable clamp is damaged, replace it with a new one.
^
Never fail to cover the outer cable end with boot.
^
Be careful not to kink the accelerator cable.
^
Always use new clevis pins.
2. Adjust the clutch pedal after installation.
3. Adjust the clutch switch (starter interlock).
4. Adjust the hill holder.(with hill holder)
DISASSEMBLY

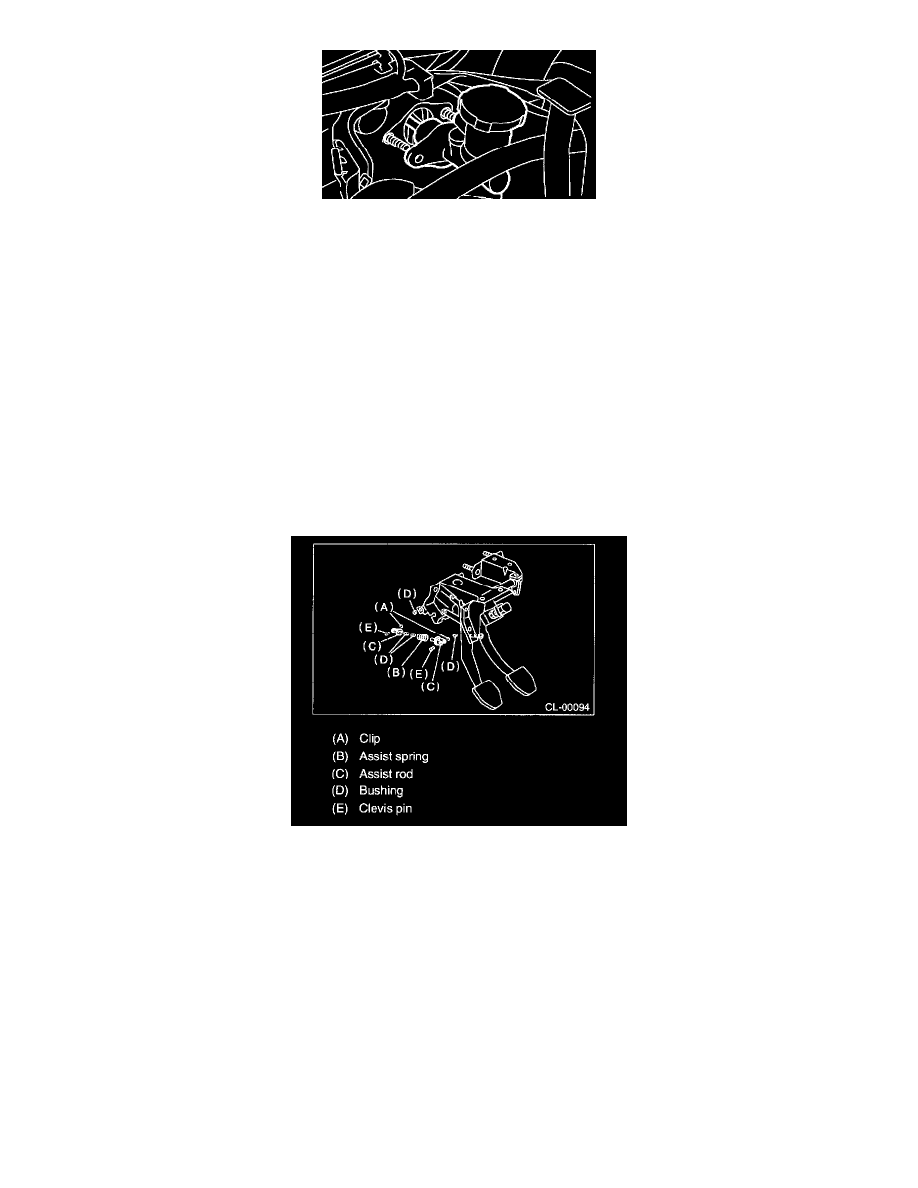

1. Remove the clips, assist spring, rod and bushing.
