Forester F4-2.5L SOHC (2004)

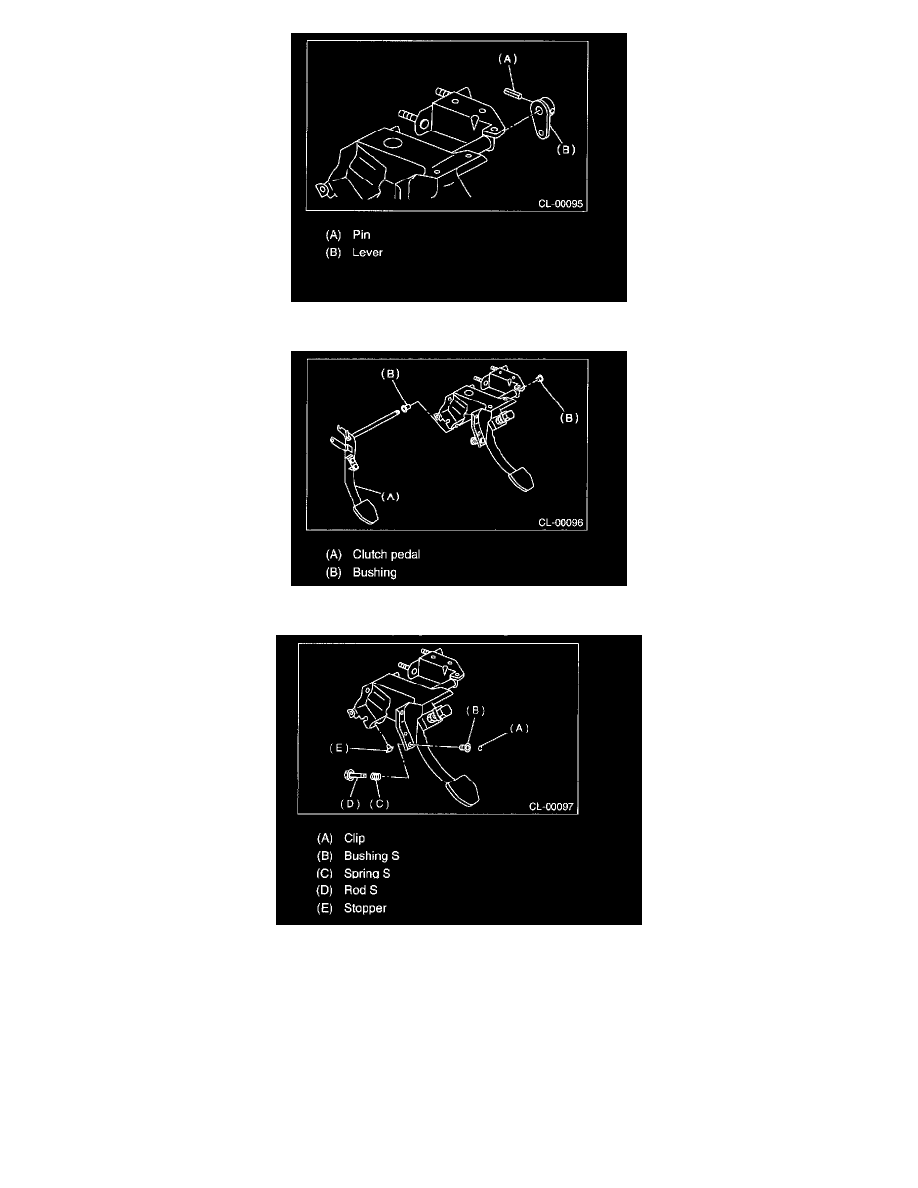

2. Remove the spring pin and lever.
3. Remove the clutch pedal and bushings.
4. Remove the stopper, clip, O-ring, rod S. and then remove the spring and bushing S.
5. Remove the stoppers from clutch pedal.
6. Remove the clutch pedal pad.
ASSEMBLY
1. Attach the stopper, etc. to pedal bracket temporarily.
2. Clean inside of bores of clutch pedal and brake pedal, apply grease, and set bushings into bores.
Grease: SUNLIGHT No.2 (Part No. 003602010 or equivalent
3. Align bores of pedal bracket, clutch pedal and brake pedal, attach the brake pedal return spring, assist rods, spring, and bushing.
NOTE: Clean up inside of bushings and apply grease before installing the spacer.
