Forester F4-2.5L SOHC (2004)

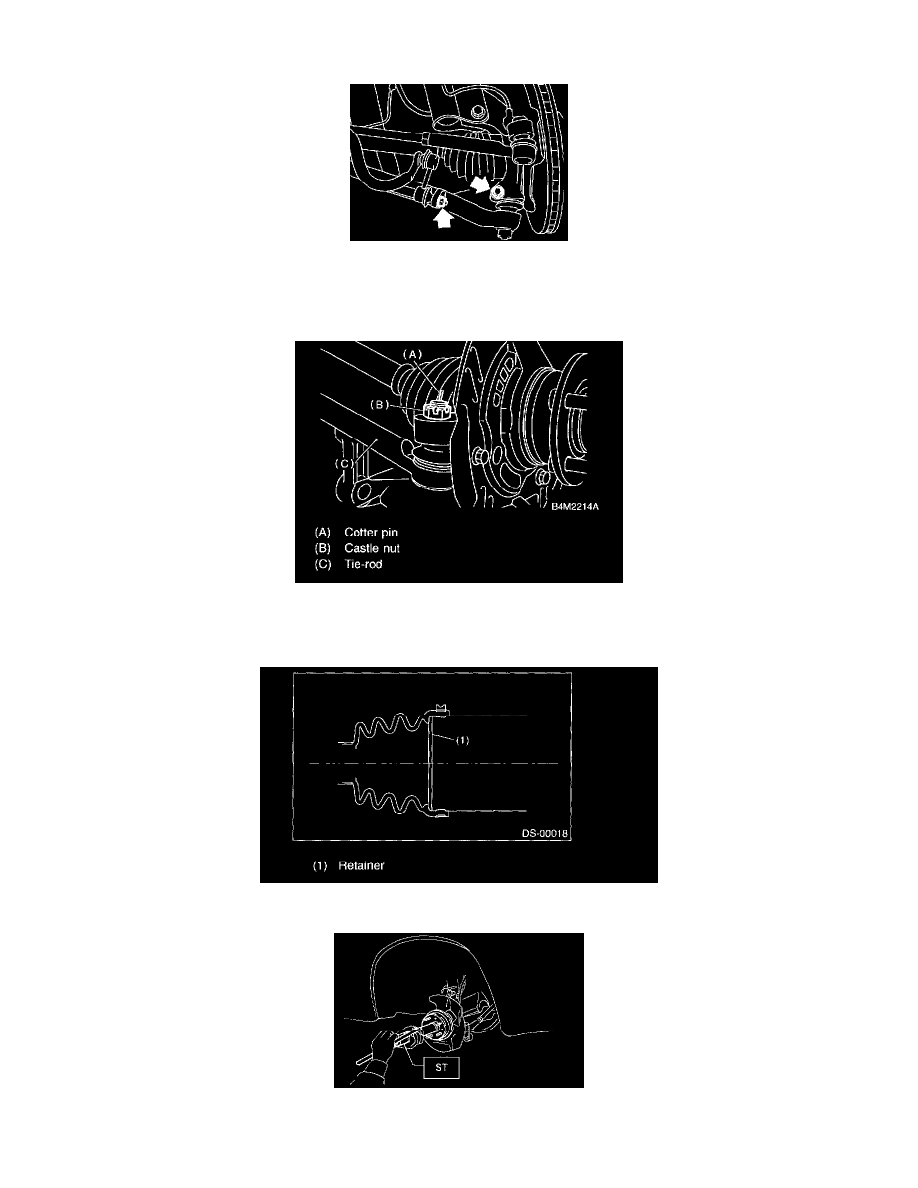

5. Install the ball joint to front axle.
Tightening torque (self-locking nut): 50 Nm (5.1 kgf-m, 37 ft. lbs.)
6. Install the stabilizer link.
Tightening torque (self-locking nut): 45 Nm (4.6 kgf-m, 33 ft. lbs.)
7. Install the tie-rod end.
Tightening torque (self-locking nut): 27 Nm (2.75 kgf-m, 19.9 ft. lbs.)
CAUTION: When connecting, do not hit the cap at bottom of tie-rod with hammer.
8. Tighten the castle nut to the specified torque and tighten further within 60° until pin hole is aligned with the slot in nut. Bend the cotter pin to lock.
9. Make sure to recognize the position of AARi retainer.
10. Using the ST1 and ST2, pull the front drive shaft into place.
ST1 922431000 AXLE SHAFT INSTALLER
