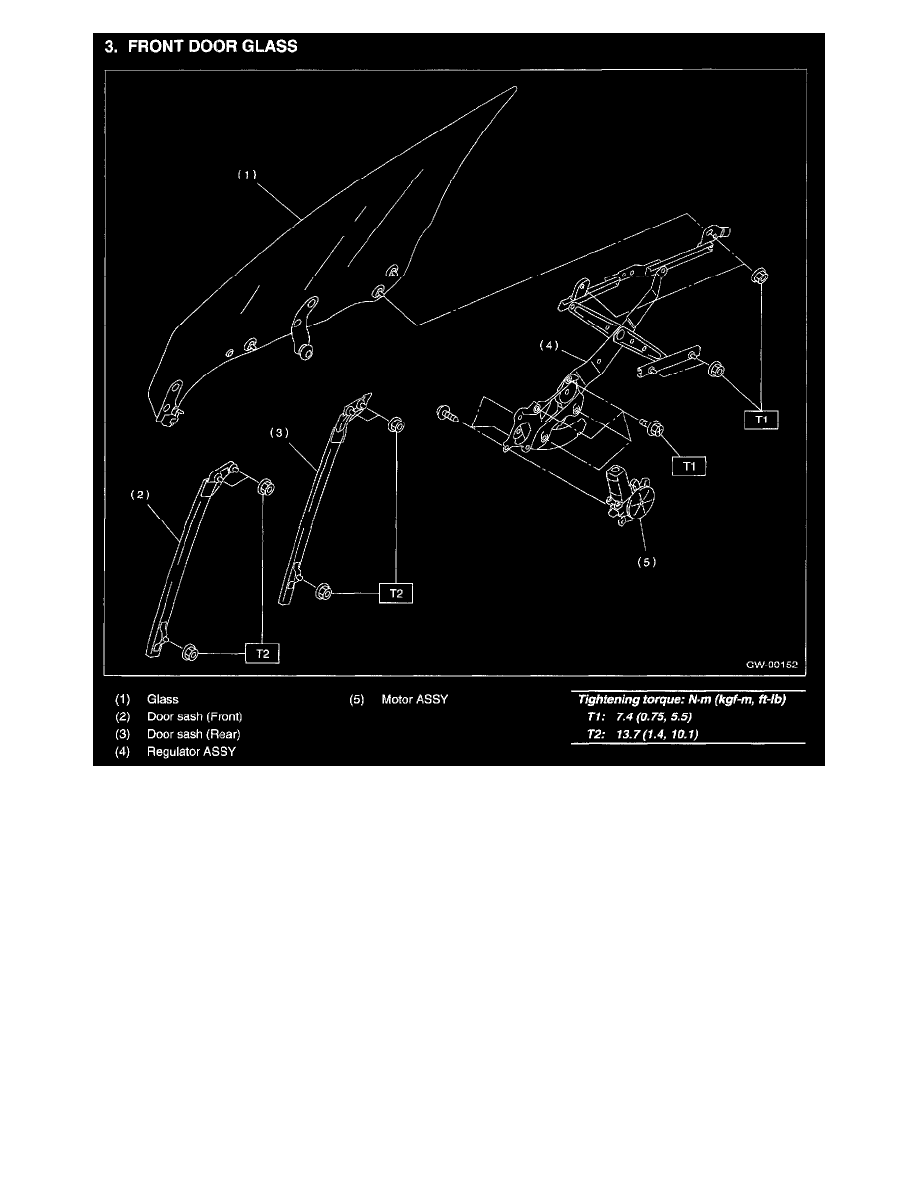

Front Door Window Motor > < Front Door Window Glass|Diagrams|Page 4727
Page 2
background image

7. Operate the power window switch to move glass to position shown in the figure, and then remove the two nuts from the service holes.

8. Remove the door glass.

CAUTION:
-

Do not turn regulator in the closing direction after removal of the glass. Otherwise gear may be disengaged.

-

Avoid impact and damage to the glass.

INSTALLATION

1. Install in the reverse order of removal.

CAUTION:  Make sure that glass stay is placed securely in sash.

2. Adjust the front door glass.
