Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
Electronic Brake Control Module: Service and Repair
REMOVAL
1. Disconnect ground cable from battery.
2. Remove air intake duct from engine compartment to facilitate removal of ABSCM & H/U
3. Use an air-gun to get rid of water around the ABSCM & H/U.
CAUTION: The contact will be insufficient if the terminal gets wet.

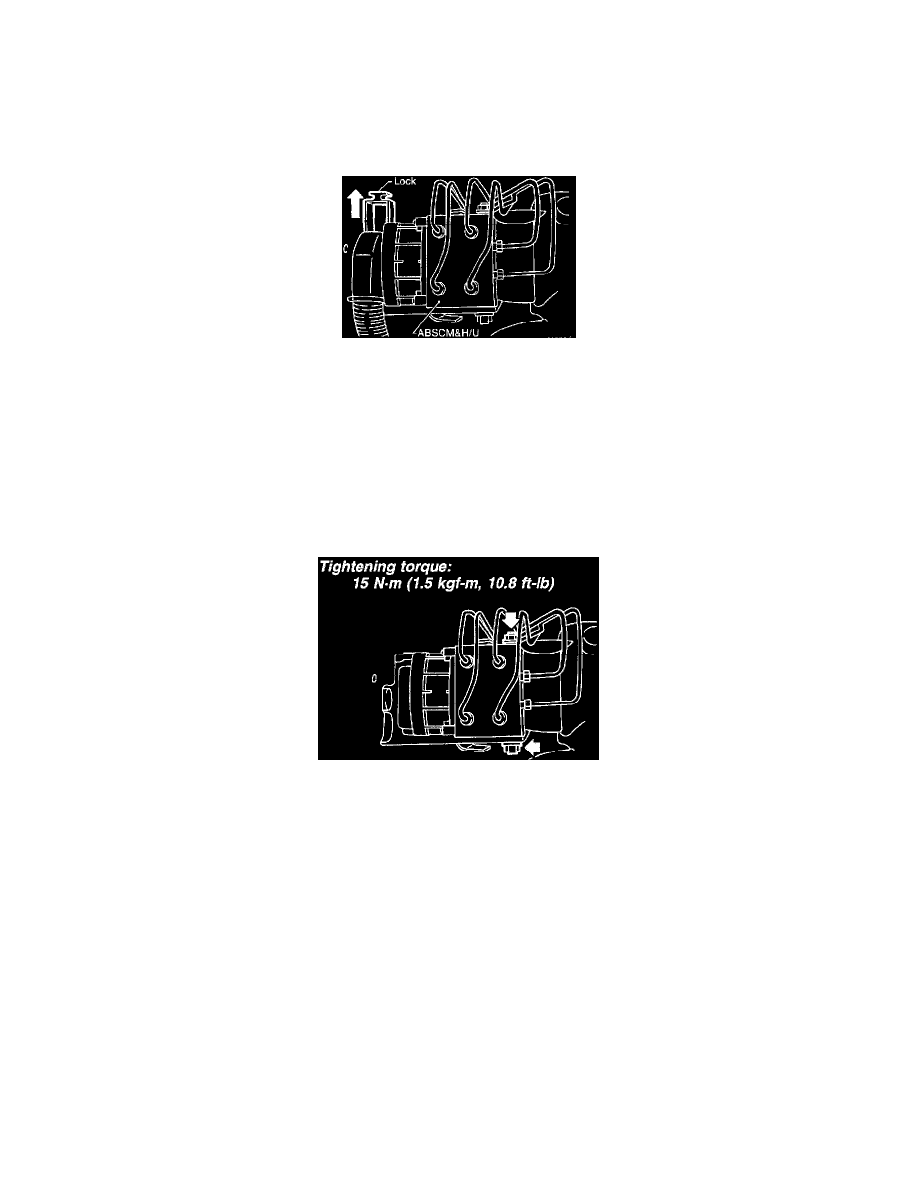

4. Pull on the lock of the ABSCM & H/U connector to remove it.
5. Disconnect connector from ABSCM & H/U
CAUTION: Be careful not to let water or other foreign matter contact the ABSCM & H/U terminal.
6. Unlock cable clip.
7. Disconnect brake pipes from ABSCM & H/U.
CAUTION: Wrap brake pipes with vinyl bag to avoid spilling brake fluid on vehicle body.
8. Remove ABSCM & H/U from engine compartment.
CAUTION:
-
ABSCM & H/U cannot be disassembled. Do not attempt to loosen bolts and nuts.
-
Do not drop or bump ABSCM & H/U.
-
Do not turn the ABSCM & H/U upside down or place it on its side.
-
Be careful to prevent foreign particles from getting into ABSCM & H/U.
-
Apply a coat of rust-preventive wax (Nippeco LT or GB) to bracket attaching bolt after tightening.
-
Do not pull harness disconnecting harness connector.
INSTALLATION
1. Install ABSCM & H/U.
CAUTION: Confirm that the specifications of the ABSCM & H/U conforms to the vehicle specifications.
Tightening torque:
18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
