Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)

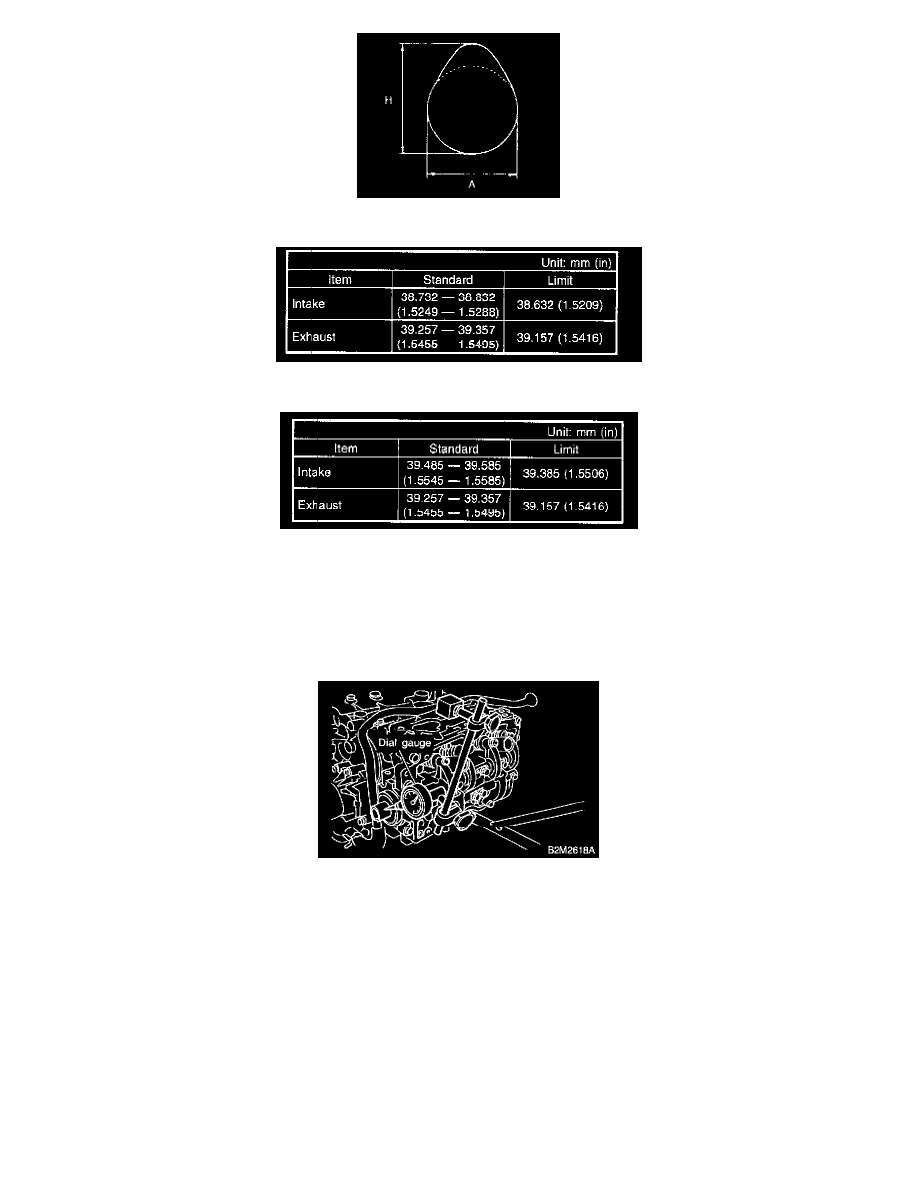

Cam height H:
^
2200 cc
^
2500 cc
Cam base circle diameter A:
IN: 34.00 mm (1.3386 inch)
EX: 34.00 mm (1.3386 inch)
2. CAMSHAFT SUPPORT
Measure the thrust clearance of camshaft with dial gauge. If the clearance exceeds the limit, replace camshaft support.
Standard: 0.030 - 0.090 mm (0.0012 - 0.0035 inch)
Limit: 0.10 mm (0.0039 inch)
