Impreza 2.5 RS Coupe AWD F4-2.5L SOHC (2001)
Drive Belt: Service and Repair

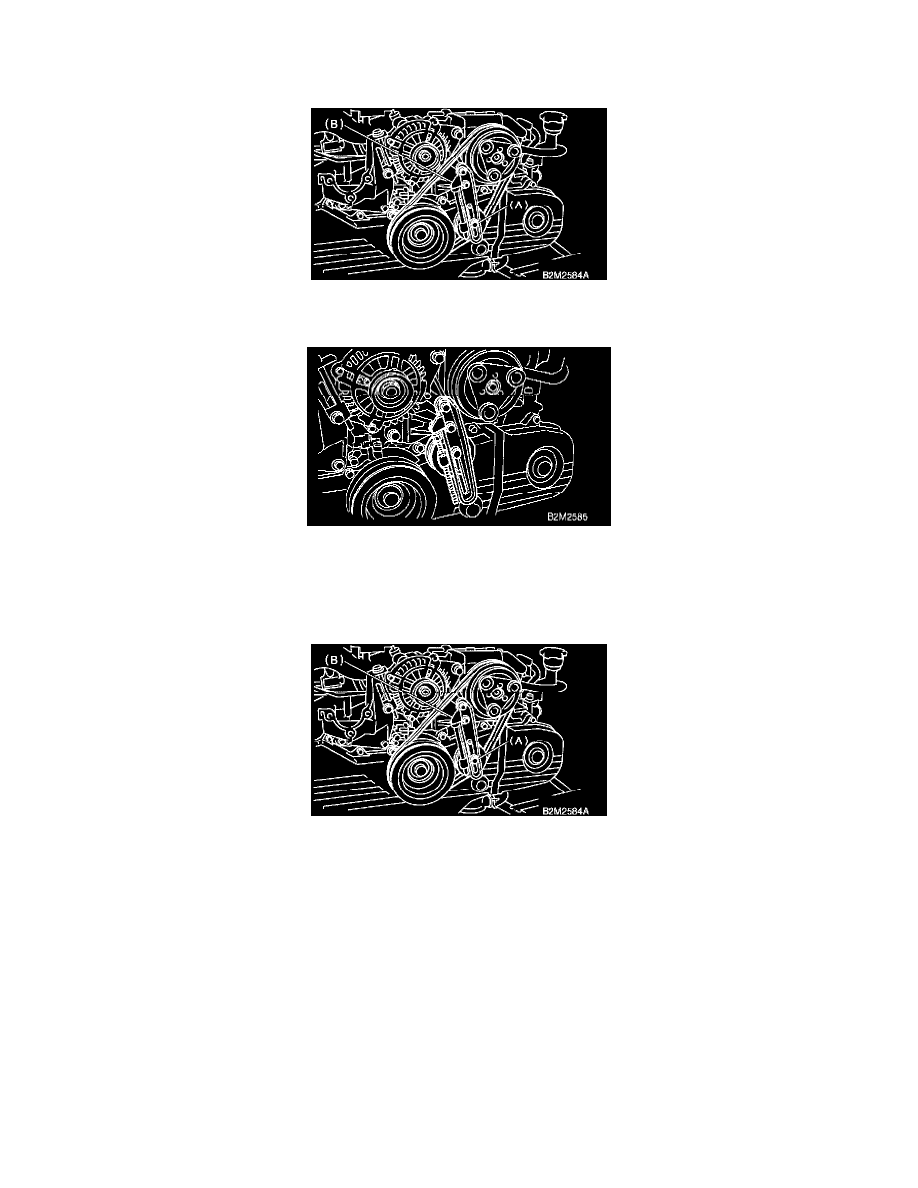

A: REMOVAL
1. Loosen the lock nut (A).
2. Loosen the slider bolt (B).
3. Remove the A/C belt.
4. Remove the A/C belt tensioner.
B: INSTALLATION
1. Install a new belt, and tighten the slider bolt so as to obtain the specified belt tension.
2. Tighten the slider bolt (B).
3. Tighten the lock nut (A).
Tightening torque:
Lock nut (A); 22.6 Nm (2.3 kgf-m, 16.6 ft. lbs.)
