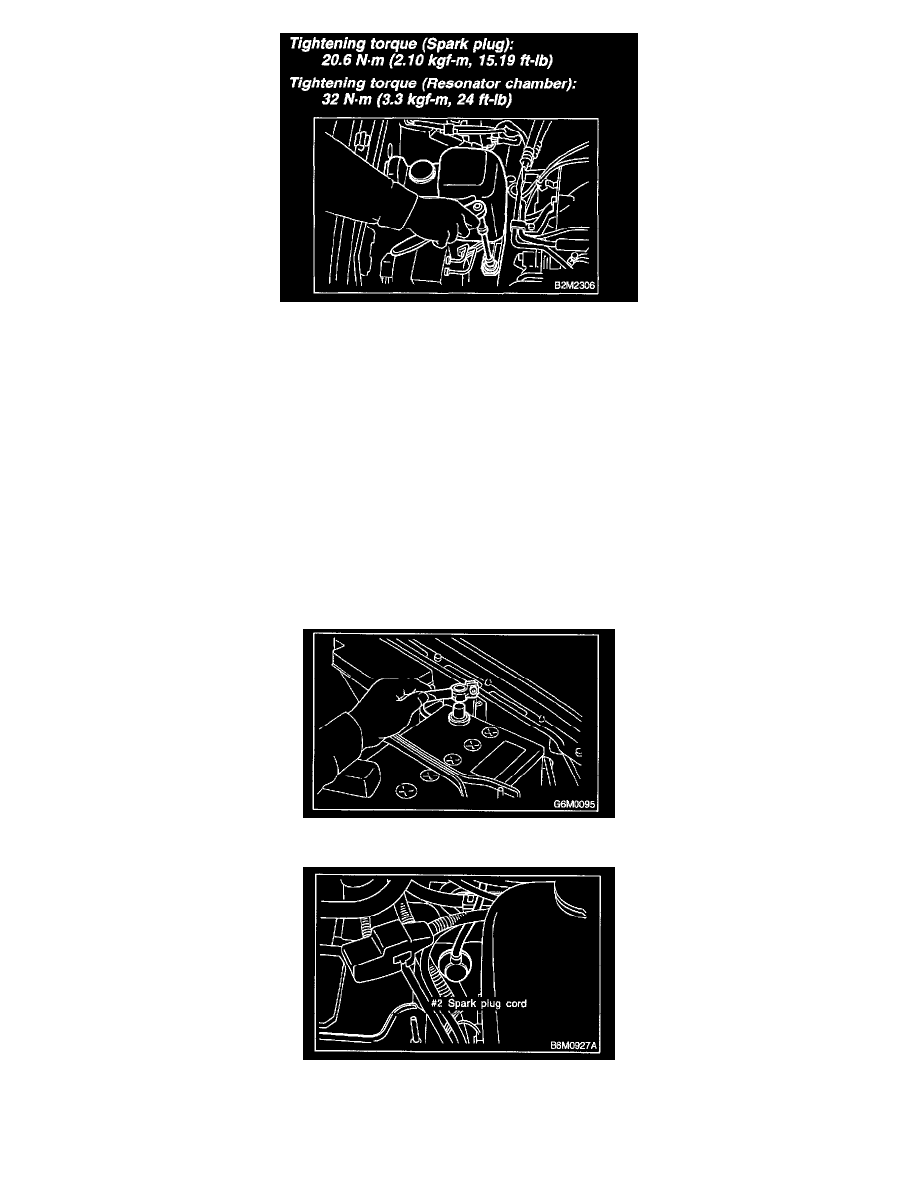

INSTALLATION

Install in the reverse order of removal.

CAUTION:  The above torque should be only applied to new spark plugs without oil on their threads. In case their threads are lubricated, the torque
should be reduced by approximately 1/3 of the specified torque in order to avoid over-stressing.

#2 Spark Plug

REMOVAL

CAUTION:  All spark plugs installed on an engine, must be of the same heat range.

Spark plug:

CHAMPION: RC10YC4 (Alternate)
CHAMPION: RC8YC4
NGK: BKR6E-11
NIPPONDENSO: K20PR-U11

1. Disconnect battery ground cable.

2. Remove #2 spark plug cord by pulling boot, not cord itself
