Auxiliary Power Outlet: Electrical Diagrams

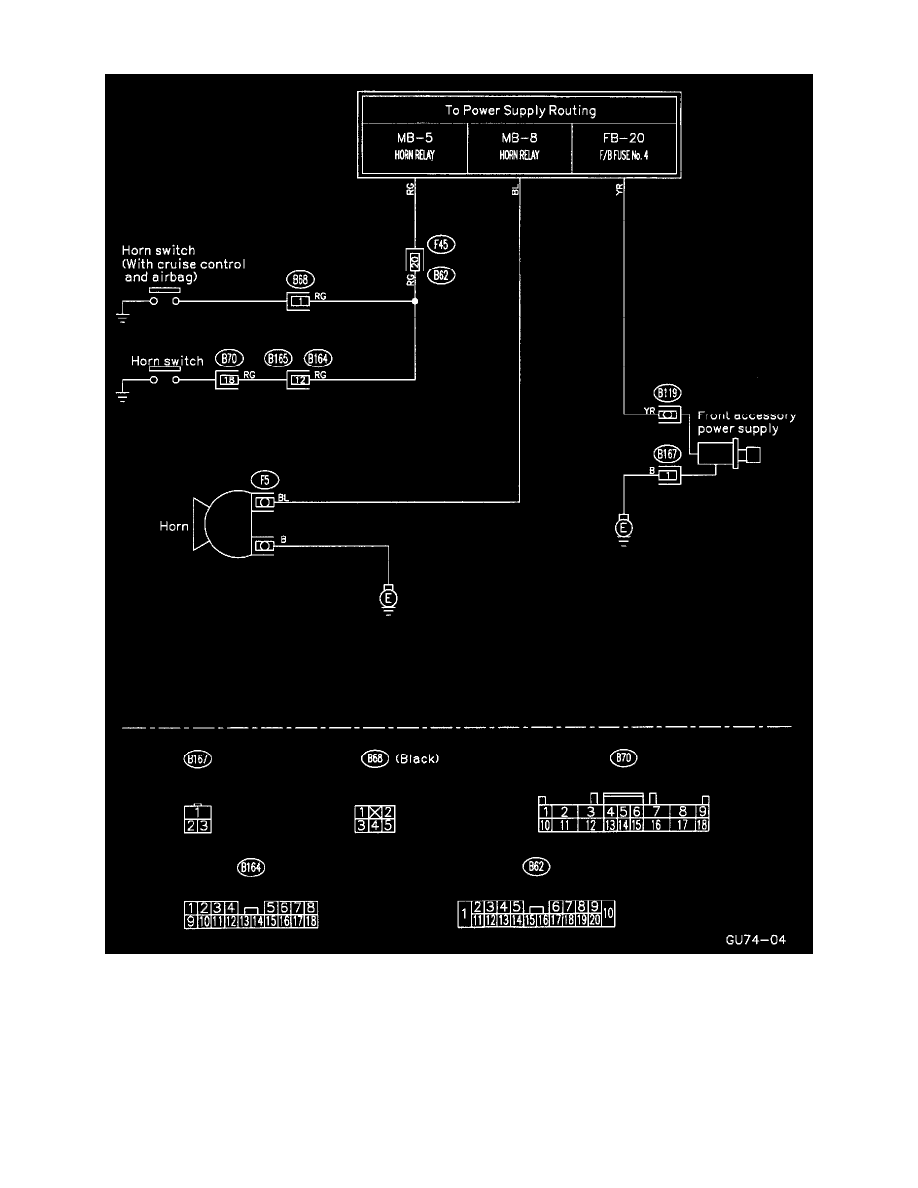

Horn And Front Accessory Power Supply System Circuit

Power and Ground Distribution
Auxiliary Power Outlet / Diagrams / Diagram Information and Instructions
